| US$11,500.00-12,500.00 | 1 Piece (MOQ) |

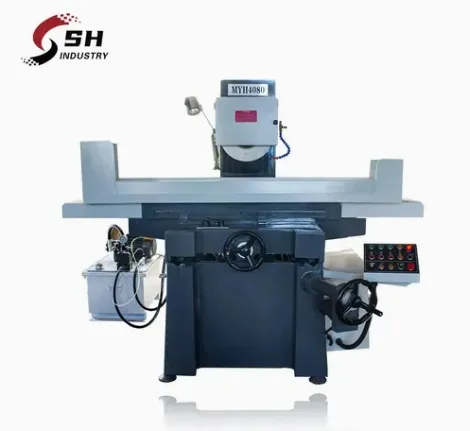

| Model | MY4080 | ||||
| Working table | Table Size (L× W) | mm | 800*400 | ||
| Max movement of working table(L× W) | mm | 900*480 | |||
| T-Slot(number×width) | mm | 3×14 | |||
| Grinding wheel | Max distance from spindle center to table surface | mm | 600 | ||
| Wheel Size(Outer diameter×width×Inner diameter) | mm | φ355×40×Φ127 | |||
| Wheel speed | 50HZ | r/min | 1450 | ||
| 60HZ | 1680 | ||||
| Feed amount | Longitudinal speed of working table | m/min | 3-25 | ||
| Cross feed(front and rear) on handwheel | Continuously(Variable Transmission) | mm/min | 600 | ||
| Intermittently(Variable Transmission) | mm/times | 0-8 | |||
| Per revolution | mm | 5.0 | |||
| Per graduation | mm | 0.02 | |||
| Vertical(up and down) feed on handwheel | Per revolution | mm | 0.8(1.0) | ||
| Per graduation | mm | 0.01 | |||
| Speed of vertical feed | mm/min | 500 | |||
| Motor power | Spindle motor | Kw*p | 4*4 | ||
| Coolant pump motor | W | 125 | |||
| Lifting motor | W | 180 | |||
| Hydraulic motor | kw | 2.2*6 | |||
| Working precision | The parallelism of working surface to base level | mm | 300:0.005 | ||
| Surface roughness | μm | Ra0.4 | |||
| Weight | Net | kg | 2800 | ||
| 3200 | |||||
| Gross | |||||
| Overall dimension(L×W×H) | mm | 2550*2000*2100 | |||
| Name | Quantity | Name | Quantity |
| Tool box | 1 | Balancing shaft | 1 |
| Socket wrench | 1 | Wheel dresser | 1 |
| Cross screwdriver | 1 | Diamond pen | 1 |
| Open-end wrench 12 x 14 | 1 | Wheel and wheel chuck | 1 |
| Open-end wrench 17 x 19 | 1 | drainage snake tube | 1 |
| Open-end wrench 22× 24 | 1 | flushing bag wire tube | 1 |
| Inner hexagon spanner 3 | 1 | Machine stand pad | 5 |
| Inner hexagon spanner 4 | 1 | foot-screw | 5 |
| Inner hexagon spanner 5 | 1 | Water tank | 1 |
| Inner hexagon spanner 6 | 1 | Electromagnetic chuck(400*800mm) | 1 |
| Inner hexagon spanner 8 | 1 | Balancing stand | 1 |
| Inner hexagon spanner 10 | 1 | Work lamp | 1 |
| Inner hexagon spanner 12 | 1 |
