3 Axles 60tons Heavy Duty Lowbed Low Bed Lowboy Truck Semi Trailer for Sale

Product Description

Heavy Duty 100 Ton 4 Axle Low Bed Trailer
-Product Description-

Specification

Dimension and Weight
Overall Dimension(mm)	13000x3000x1650mm
Working Deck Dimension(mm)	9000x3000x1350mm
Platform thickness(mm)	4mm
Main Beam	"H"main beam design,Q345B carbon steel, the height of the beam is 500 mm, upper plate is 16mm,down plate is 18mm, middle plate is 10 mm.
Wheelbase	7,650mm+1,310mm+1,310mm
Payload	60,000kg
Tare weight	9,000kg
G.V.W.R.	69,000kg
Function	To transport bulk goods or heavy equipment like loader or excavator
Running System
Axle	13Ton, ZY brand optional FUWA brand, one hundred fifty thousand Kilometers no need maintenance
Axle Number	Three
Tire	1100R20, 12 pcs Taitong brand
Rim	8.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs
Suspension system	Common Mechanical Suspension
Steel Spring	10/10/10 leaf spring with 90mm(W) *13mm(thickness)
Electrical System	Chinese standard 24V lighting system
Brake system:	Dual line pneumatic brake, SAE hose and connector,optional ABS
Brake air chamber	6 units T30/30 spring brake chambers
Emergency relay valve	Wabco relay valve
Traction/King Pin	2" and 3.5" removable Kingpin, bolted in type 500mm from the front face of the front bolster
Landing Gear	Zhenhua brand 28ton
Accessories:
Tool box	1pcs, One crank and one shaft head wrench
Ramp	Heavy duty trailer ramp
Spare wheel carriers	2 pcs
bumper	Rear bumper
Electrical system	1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness)
	Tail lamp with turn signal, brake light & reflector, side lamp etc.
	One set 6-core electric cable protected by PVC conduit on main frame
Paint	Shot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um,A layer of anti-rust paint,two-layer finish.Waxed

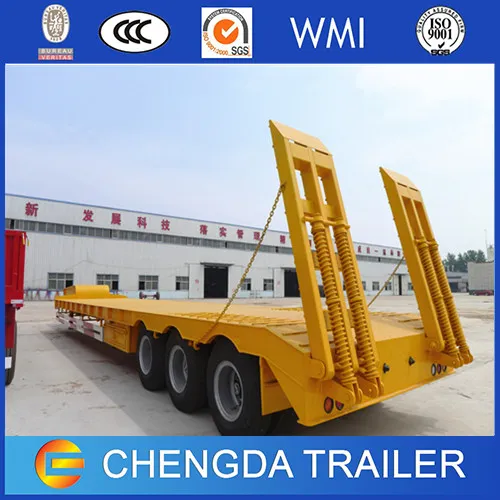

More view of the lowbed semi trailer
Show details
Productive process
-Packaging & Shipping-

Shipment method: the low bed trailer can be shipped by bulk ship, roro ship.
Shipping by bulk ship
Shipping by RORO ship

-Our Services-
Reply your inquiry in 12 working hours; Experienced staffs answer all your questions; Customer's design is available for certain products(OEM); Spare parts for all types of engine machinery with reasonable price; Different kinds of semi trailer can be provided with competitive price. We also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers and nice
quality to ensure the trucks and trailers being in good working conditions.
-Company Information-

Shandong Chengda Trailer Manufacturer Co.,Ltd.
established in 2005 is one of the qualified manufacturers of various trailers, like lowbed semi-trailer, flatbed semi-trailer,cargo
trailer etc.Integrated production, scientific research&development and professional sales teams, all those advantages could provide full service of trailers, semitrailers, tractor head, dump truck, engineering machinery and trailer parts
With high standard machinery and automatic equipment, powerful R&D team and elite sales team, We have
build long business relationship with many world famous enterprises such as SINOTRUK, SHACMAN, FAW,
etc.
In 2014, we enlarged our factory and add more prodution line. The sales valve in this year increase in a boom
way.
