Product Description
Product Description

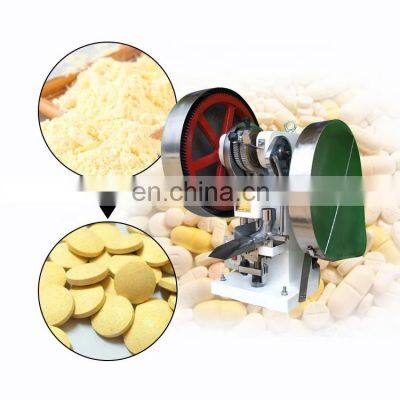

Introduction of Tablet Press Machine
Tablet press presses the granule or flour into the circular, the special-shaped and has the writing, the symbol, the graph chip shape automatic continuous production equipment which the diameter does not exceed 13mm. Tablet press machine is only equipped with one set of punching die, the filling depth and the thickness of the material can be adjusted, which can adapt to the requirements of the pharmaceutical industry for pressing various Chinese and western medicine tablets, food factory and other industries for pressing various similar products.
Feature of Tablet Press Machine
1. Tablet press machine excellent performance, strong adaptability, convenient operation.
2. Easy maintenance, small outsize and light weight.
3. Material filling and depth adjustable.
4. Tablet press machine could be operated by electricity and hands. 5. Tablet press machine could press different tablet size and shape by changing mould.
Parameters of Tablet Press Machine
Model
| TZ-230
| TZ-340
| TZ-520
|
Max. Pressure
| 15 KN
| 50 KN
| 60 KN
|
Max. Dia. of Tablet
| 12mm
| 20mm
| 25mm
|
Max. Depth of Filling
| 12mm
| 18mm
| 18mm
|
Output
| 5000tablets/h
| 4500tablets/h
| 3000tablets/h
|
Motor power
| 0.37KW
| 0.55KW
| 0.75KW
|
Rotational speed
| 1400r/min
| 1400r/min
| 1400r/min
|
Net Weight
| 90kg
| 145kg
| 185kg
|
Dimensions (mm)
| 570 * 380 * 630
| 650 * 440 * 650
| 750 * 380 * 695
|
FAQ
1. What should we do if the length of undershoot is different, the overshoot is poor and the filling amount is uneven?
Fix the difference, the difference within ±5μm.
2. If you have fine powder adhesion punch in the underpass, how can you make the difference of sheet weight larger when the punch is suspended?
This is because the down flush rotation is not flexible, should timely check, remove the punch, clean up the down flush and die hole.
3. How to make good products by using tablet press machine?
Raw material must be stratified to reduce the size difference.
4. Machine Using
we can supply English manual book and also take a video for showing how to resolve the problems or dispatch our worker to your factory.
Our Services
1.Manufacture Service
(1) Provide goods according to customer need.
(2) Keep superior quality forever.
(3) Finish deal with reasonable price.
2.Online Service
(1) Timely response online by Skype or Trade Manager.
(2) Keep in touch by Email or Phone.
3.After-Sales Service
(1) Offer service for your project or factory building.
(2) Repair Maintenance in the guarantee period.
(3) Installation and clerks training.
(4) Spare and wearing parts provided for free or big discount.
Ask feedback from you to serve you better in the future.
