High Quality Steel Reed for Jacquard Weaving Machine Needle Loom Reed Textile Loom Comb

Product Description

Product Description
main products
Specializing in the production of special reed for Toyota, Begala and Tsuda Colt and double towel air-jet reed, energy-saving air-jet reed, stainless steel flat. High quality, high precision reed
Introduction of foreign production technology, Reed sheet made by precision machining, Its elasticity is good, High wear resistance, Surface accuracy and smoothness reach the current international level.

Seriess tainless steel flat reed	Series air-jet loom reed
Flat reed of various rapier eyes tatting machines	Various air-jet looms with special reed{super high wear resistance}
Special flat reed	Double reed bend
Stainless steel reed beam	Cone{bell mouth}
Stainless steel reed	Reed beam{super hard}
Stainless steel wire tie	Stainless steel reed stainless steel half yuan
Stainless steel semicircle	Stainless steel wire tie

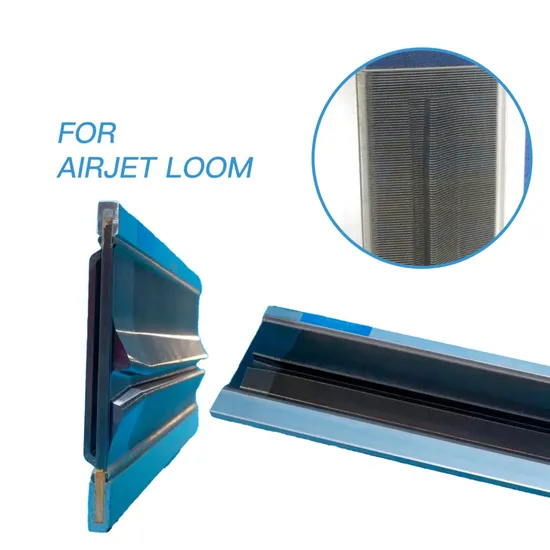

Air-jet reed (double-layer air-jet reed) for various air-jet looms

type	H	h1	h2	h3	d	α	a
TSUDAKOMA ZA100series	111.5	12	18	51	8	12°	105
TSUDAKOMA ZA200series	122	12	18	56	8	12°	113
TSUDAKOMA ZAXseries	122	12	18	56	8	12°	113
SULZER TEXTIL series	118	10	20	57	8	0°	112
DOMESTIC	All kinds of reeds for air-et looms
SPECIAL TYPES	All kinds of special reed can be developed according to the user s requirements

Air jet profiled reed (double reed bend)
High quality, high precision and extra wide reed
The introduction of the world's most advanced reed production equipment, technology, technology and testing instruments to meet customers with high speed, high efficiency, low consumption, high additional benefits to maximize high-quality precision manufacturing.
Various nozzle air-jet reeds and special grooves of loom models
Stainless steel flat reed (double reed) is used for various types of rapier plate shuttle reed, according to the requirements of the rapier loom for the matching reed flatness, must meet the flatness of the requirements of 0. 1mm. Otherwise, it will increase the loss of loom accessories and the quality and life of the whole operation, as well as the quality of the fabric.

---
