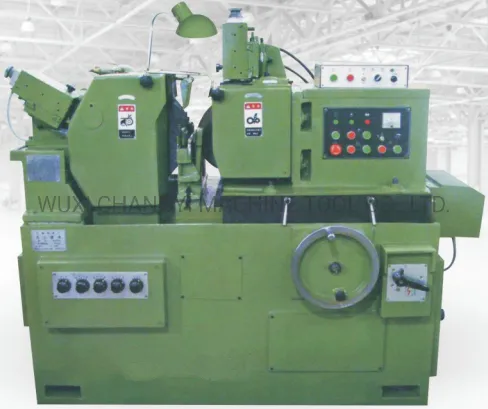

M1050A Od 50mm Centerless Grinding Machinery

US$6,860.00
1 Piece
US$6,800.00
2+ Pieces

Basic Info.

Model NO.
M1050A
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Manual
Cylindrical Grinder Type
Plunge Cylindrical Grinder
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Grinding Diameter
0.5-10mm
Max. Grinding Length
40mm
Grinding Wheel Spec.
Psa200X50X75mm
Regulating Wheel Spec.
Psa125X50X50mm
Grinding Wheel Rotary Speed
3320 Rpm
Regulating Wheel Rotary Speed
45-240 Rpm
Machine Weight
850kg
Transport Package
Wooden Case Package, Waterproof Case Package
Specification
1550x1300x1405mm
Trademark
CHANGYI
Origin
Wuxi, China
HS Code
84602990
Production Capacity
50 Sets Per Year

Product Description


M1050A Characteristic of machine tool
The grinding wheel spindle bearing is five slice dynamic sliding bearing, which has large bearing capacity and high rigidity.
The wheel spindle bearing for 1:30 intergral type sliding bearings, large bearing capacity, high precision.
The wheel frame in the horizontal direction for small angle rotation, the grinding wheel can not small taper required the whole cone, improve the utilization rate of grinding wheel and reduce the dressing time
The wheel gear adopts AC frequency conversion stepless adjustment.
Long sand, wheel dresser reciprocating adopts hydraulic transmission, stepless adjustment.
M1050A Through type specification
Through feed Grinding diameter 2-50mm
Grinding length 120mm
Grinding wheel specification PSA400*150*203mm
Regulation wheel specification PSA300*150*127mm
Grinding wheel speed 1668 rpm
Regulation wheel speed 20-200 rpm
Regulation wheel swivel angle In vertical plane PSA400*150*203mm
In horizontal plane PSA300*150*127mm
Grinding feeding Feed wheel feed 0.4mm
Feed hand wheel feed 0.002mm
Feed of each meter of trimmer dial 0.01mm
Height from centerline of grinding wheel & regualtion wheel to work rest 220mm
Two wheel center line to bed bottom distance 1990mm
Total power of machine 12.99kw
Grinding wheel motor 11kw
Guide wheel motor 1.5kw
Hydraulic pump motor 0.25kw
Cooling pump motor 0.12kw
Lubricating pump motor 0.12kw
Machine tool connecting power 3N-50Hz 380V
Overall dimensions 1920*1681*1479mm
Machine weight 2800kg
Machining accuracy Roundness 0.002mm
Cylindricity 0.003mm
Roughness Ra0.32um
