DOING Pyrolysis Machine | Factory supply | Latest technology
Products Description

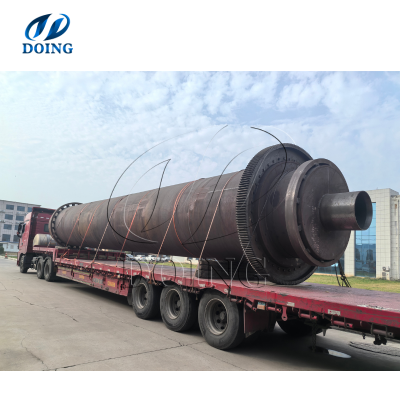

DOING COMPANY PYROLYSIS PLANT
The continuous type and batch type pyrolysis plants designed by Doing Company’s engineer team have been exported to the United States, the United Kingdom, France, Italy, Australia, Dubai, Brazil, Kazakhstan, Pakistan, India, Nigeria, Mexico, Egypt, Thailand and other 90+ countries and regions. Their outstanding economic and environmental benefits have led the development of the waste tire/plastic/oil sludge/rubber/aluminum plastic composite material pyrolysis industry.
Product Paramenters
Scheme 1: New design continuous type pyrolysis plant
Scheme 2: Cost-effective batch type pyrolysis plant
Scheme 3: Free installation small scale pyrolysis plant unit
Items
| Waste Pyrolysis Plant
|
Equipment type
| DY-100-6
| DY-1-10-12
| DY-1-15-50
|
Raw material
| Waste plastics, tyres
| Waste plastics, tyres
| Waste plastics, tyres
|
Structural form
| Horizontal rotation
| Horizontal rotation
| Horizontal rotation
|
24-hour Capacity
| 100kg-6 ton
| 10-12 ton
| 15-50ton
|
Oil yield
| 0.45-3.3ton
| 4.5 -7.2ton
| 6.7-30ton
|
Operating pressure
| Normal
| Normal
| Normal
|
Material of pyrolysis Reactor
| Q245R
| Q245R
| Q245R
|
Thickness of pyrolysis Reactor
| 16mm
| 16mm
| 16mm
|
Rotate speed of pyrolysis Reactor
| 0.4turn/minute
| 0.4turn/minute
| 0.4turn/minute
|
Total power
| 15KW
| 15KW
| 65KW
|
Mode of cooling
| Water cooling
| Water cooling
| Water cooling
|
Cooling area of condenser
| 100sqm
| 100sqm
| 100sqm
|
Kind of transmission
| Internal gear drive
| Internal gear drive
| Internal gear drive
|
Noise dB(A)
| ≤85
| ≤85
| ≤85
|
Size of Reactor(D×L)
| 2200×6000
| 2600×6600
| 2800×6600
|
Working form
| Intermittent operation
| Intermittent operation
| Intermittent operation
|
Delivery time
| 20days
| 20days
| 20days
|
Weight
| Depends on the Scales
| 32T
| 35T
|
Recommend Products
Recommended by seller
Small scale 100KG-5TPD Waste tire pyrolysis plant Rubber tyre plastic to fuel oil pyrolysis machine£7,937.59 - £9,525.11 / set1 set
ISO CE Environmental Friendly Small to Big Waste Plastic Pyrolysis Plant Waste Tyre Pyrolysis Machine Reactor£22,225.26 - £53,975.62 / set1.0 set
Rubber powder production line/tire shredding machine£4,762.56 - £63,500.72 / set1.0 set
Best cost 1-15TPD Waste Motor/Engine Oil to Diesel Fuel Distillation Plant Pyrolysis Tyre Plastic Oil Refinery Plant£22,225.26 - £53,975.62 / set1.0 set
Project Case
Customer Feedback
Our services
Company Profile
00:00
00:45
DOING HOLDINGS CO., Ltd
Henan Doing Environmental Protection Technology Co., Ltd, the subsidiary company of Doing Holdings Co., LTD, is a comprehensive environmental equipment manufacturer integrating technological design, research and development, machine production, sales and after-sales service in one. Relying on excellent technical R&D strength and innovative spirit, our company has won up to 23 new utility patents and invention patents. And our company is honored as the National High Technology Enterprise awarded by the Municipal Science and Technology Commission.Our main business: solid waste and hazardous waste treatment equipment, waste rubber tire /plastic/oil sludge/coal tar/aluminum plastic pyrolysis plant, pyrolysis oil/waste/crude oil to diesel distillation plant, other tire recycling machines, and related environmental protection devices. Now, our products sell well in 100+ countries and regions around the world.
FAQ
Q: How much a waste pyrolysis plant?A: Different capacity of tyre pyrolysis plants have different cost. And also different desgins of tyre pyrolysis plants have different cost. But if you want to save some cost, our engineer also can design the most efficient machine solutions for you. To caculate detailed cost for your referrence , please contact us directly.Q: How can I sell the tyre pyrolysis oil and plastic oil?A: The good sales, because oil is an energy, hotels, restaurants, bath center, diesel stoves, boilers, mostly using this oil as fuel, other power plants, ceramic plants and many other enterprises to use more of this fuel. In addition, this oil through the oil processing and reconciling national standard can be directly used as fuel engine. Buy our equipment, users share a large network, this network has sold buy.
Q: How many countries your machine have been exported and installed?A: Our machinery have been sold to 90+ countries and regions around the world, winning great praise and trust of our customers all over the world! For example, Italy, Romania, Macedonia, Albania, Estonia, Rusian, Egypt, Ethopia, Nigeria, Congo, Lebanon, Jordan, Pakistan, Kazakhstan, India, Tailand, Malaysia, Mexico, Panama, Guatemala, Aruba, Jamaica, Ecuador, Haiti, etc.Q: Can we visit your factory of pyrolysis plant ? And where is your factory?A: Our office is in Zhengzhou City, Henan Province, China. From Zhengzhou International Airport to our office is just need 30min. We are responsible to pick customer up. We have sample machine in our factory for your visiting. Welcome at any time!
>>
