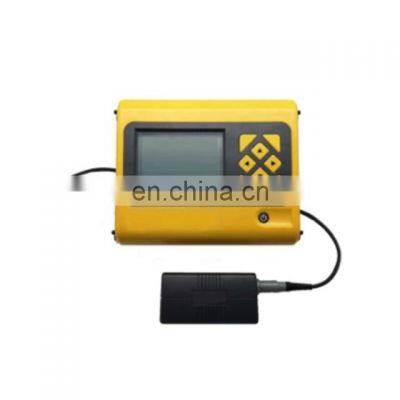

Product DescriptionTEM-R51 Rebar location tester used to test steel-bar diameter, distribution , backing thickness in concrete.Specification1.Longer service life of the connector clip.2.Good Quality of signal cable3.High precision and stability4.Longer service life of the sensor5.Single sensor6.Display test information real-time7.Grid and section scan mode8.Tri-wheel steel-bar scan system9.Powerful data process and analysis software in windowsTechnical DataApplicable Steel-bar diameterφ6mm~φ50mmTested range of concrete backing thicknessLow range:6mm~90mmHigh Range:7mm~190mmPermissible errorLow RangeHigh Range±16~597~79±260~6980~119±470~90120~190Tested range of steel-bar diameterφ6mm~φ50mmPermissible error of steel-bar diameter test±1 gradeApplicable environmentalTemperature:-10℃~40℃Dampness <90% RHEMI:no strong electromagnetic fieldPower supply6 Dry cells, work more than 30 timesPackingRelated ProductZBL-R630A Rebar locator.ZBL-R630A is used to test the location of rebar in concrete, the thickness of the protective layer, and the diameter, orientation and distribution of rebar by using an electromagnetic induction method. ZBL-C310A Rebar Corrosion DetectorZBL-C310A is a specialized apparatus; it is designed according to the electrochemical testing method (natural potential method) of“construction testing technical standard”.TEM-620XH rebar locator digital wall scannerTEM-620X uses an electromagnetic induction method, which can detect the rebar location and cover.Thickness & diameter accurately, store, transfer and analyze the real time test data.Contact UsDALIAN TAIJIA TECHNOLOGY CO.,LTDAddress:NO.5 Shanshui Yuan, High-tech Industrial Zone Dalian, China 116033 Email:office@tmeasurement.comSkype:office@tmeasurement.com Whatsapp/Wechat :+86 15541112235 Phone: +86-411-39685079
>>
