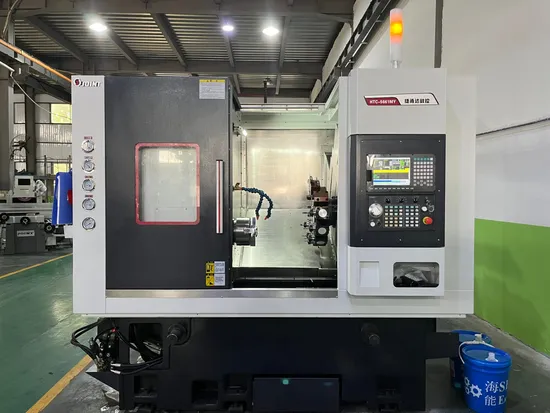

Power Head Tool Turret CNC Lathe Machine with Turning Milling and Boring Function and Y Axis

Product Description

Product Introduction: Turning and Milling CNC Lathe Machine (with Y axis ) configurates with SYNTEC and FANUC control system and its matching servo drive and motor, realize the motion axis told operation, improve the efficiency of parts processing, which can realize small dishes, axial parts of plane milling, drilling tapping, milling slot milling process, such as turning, milling and boring composite function, can achieve a clamping, Complete all machining procedures. It can be widely used in 3C products, automatic aircraft parts, electronics, machinery, automobile, aircraft, aerospace, ships, national defense and other fields of product processing.
Product characteristics:

1. Turning and milling CNC lathe machine is 45° inclined, with integral strong slant lathe bed structure (bed and base is integral), which is with good shockproof performance, high overall rigidity, and saving space characteristics.

2. X and Z axes adopt Taiwan precision ball screw and linear guideway, and rapid moving speed can reach 24m/min.
3. High precision sleeve type spindle, high accuracy, good performance, stable quality, suitable for high speed processing, especially for parts which requires high surface fitness.
4. 8+12 positions power tool turret, equiped with power head, chaning tool fastly, can finish processing in one time, especially those parts who is complicated, complexed and high requiring, saving manual tool changing time and clamping time and improving efficiency.
5. Can be optional with Y axis power head assembly, achieving end face multi-faces drilling and side milling, drilling functions.
Processing Industry:

Aviation parts Handware parts Multi-angle parts
Product Specifications:

Item	Unit	HTC-5661MY
Max swing over bed	mm	560
Max turning diameter on carriage	(mm)	170(excircle)
Max processing length	(mm)	300
Spindle motor rate	(KW)	11
Spindle head form		A2-6
Hydraulic chuck diameter	mm	8''
Spindle max rotation speed	rpm	4200
Spindle hole diameter	mm	Ø66
Work piece bar diameter	mm	Ø52
X axis max travel	mm	230
Y axis max travel	mm	85
Z axis max travel	mm	610
X/Z axis connection way		Direct connection
X/Y/Z axis ball screw specification		3210/3208/4010
X/Y/Z axis linear guideway specification		45/30/45
X/Z axis max rapid movement speed	m/min	20/16
X/Z axis rapeat position accuracy	mm	0.015/0.015
Quill diameter	mm	80
Quill travel	mm	80
Tailstock max travel	mm	450
Tailstock sleeve taper hole		MT5
Tool number		12T(With Y axis power tool turret)
Tool turret center height	mm	100
Dimension (L*W*H)	mm	2660*1760*1900
Weight	Kg	3350

Product details:
Company Profile Shenzhen Joint Technology Co., Ltd. specializes in R&D and manufacturing mold processing and machinery parts processing equipment, we developed high quality and high-tech research, development, manufacturing, service team and management system, and expanded products to more than 11 series from milling machines, to machine center,mechanical arm, automation. With the exceptional quality products and distinct brand reputation, our products are sold to more than 40 developed cities all over China, and also to more than 20 countries all over the world across Asia, Europe and America.Our company takes the high quality product as orientation, R&D ideas is to provide customers with the most suitable quality products, became a professional machine tool manufacturer with a complete product line of mould and parts processing machine tool and strong tailor-made design capability in China. Core strengths 1. Standardize processes and operating mechanisms, high standards production and testing software and hardware - Ensure stable product supply and service support.
2. We insist in-depth research and technological precipitation for more than 20 years - Promote rapid innovation and progress in products and technology.
3. Comprehensive information management systems such as ERP and CRM - JOINT has formed a efficient operation and continuous improvement system.
4. Integrity, collaboration, innovation, and win-win spirit - we JOINT has established a strong and stable supply chain, and a large long-term win-win customer base. Special advantages 1. Provide more practical customized products
2. Provide CNC product applications support
3. Provide integrated solution for auto production line
4. Provide integrated design of mold, and parts processing production line

---
