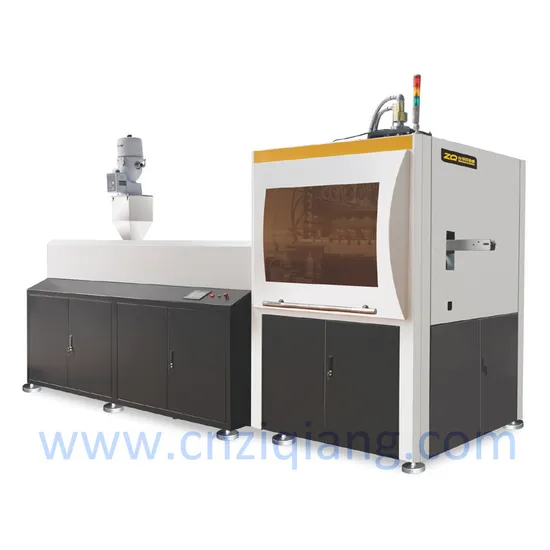

High-Speed Plastic Bottle Cap Compression Molding Machine

Product Description

High-Speed Plastic Bottle Cap Compression Molding Machine
ZQ-C24H cap compression molding machine is applicable for cap production from thermoforming plastics (PP, PE, etc., ), its rotating design ensures continuous cap production and no injection time, so yield greatly increased.
The machine adopts continuous compression molding hydraulic press for plastic cap manufacturing via the extrusion of dry-blend granulated compounds (i. E. HDPE, PP), metering, pelletting and insertion in the cavities to mould it into the final shape. The capacity of the machine depends heavily on compound properties and the geometry of the manufactured caps.
High-Speed Plastic Bottle Cap Compression Molding Machine
Equipment Advantages.
1. Intelligent PLC controlling system
2. Human-machine interface, easy & stable operation
3. Machine adopts world-class industry design and processing crafts, exquisite electrical configuration
And superb assembling technology
4. Easy computer operation realizes full-auto production from PP&PE resin to final caps.
5. Rotation compressing cap molding offers shorter recycling time, high yielding and fine final caps,
Caps with no injection point and easy for cap logo printing
6. Cap with high density, short change-over time for one color cap to another.
7. Low energy consumption, output triples compared with the traditional cap injection molding machine
8. Each cap mold is independently compressed, no runner scrap.
9. Easy and low cost mold maintenance
10. High efficiency,low price
High-Speed Plastic Bottle Cap Compression Molding Machine,equipment information.

TYPE	MODEL	ZQ-C24H
Cap	Number of Cavity	24cavities
	Output	18000-25000pcs/hr
	Raw Material	PP/PE
	Diameter of Cap	22-45mm
	Height of Cap	10-25mm
ELECTRICAL SYSTEM	Installation Power	50kw
	Actual Power Consumption	26kw
	Power Supply (Three Phase,Five Wire)	380V 50Hz
AIR SYSTEM	Operatating Pressure	0.8Mpa
	Pressure Consuming	1.0m³/hr
MACHINE	Machine dimension	4.3x1.95x2.65(m)
		5.0ton

Note: The specifications are subject to change without notice for the further improvement.
Note: Custom production accepted. Any client idea tried.

---
