Welcome to visit

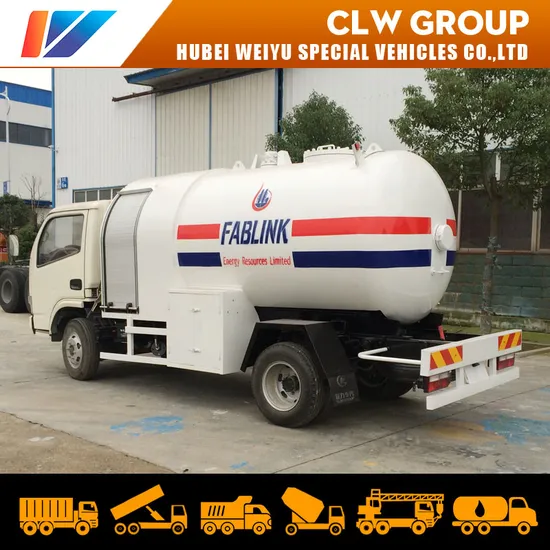

Gas Dispensing Delivery Truck Small 2ton mobile Gas Refilling Truck

US$29,850.00
1-4 Pieces
US$22,500.00
5+ Pieces

Basic Info.

Model NO.
CLW5476
Certification
ISO9001, GB
Tank Marerial
Metal Tank
Type
Low Temperature Storage & Transportation Equipment
Storage Objects
Liquid, Gas
Design Code
GB150-2011, ASME VIII 01
Tank Material
Q345r, Q370r Q420r, SA516
Tank Capacity
2.5metric Ton, 2.5mt
Tank Type
Cylinder Shape
Head Type
Elliptical or Hemispherical
Design Pressure
1.61MPa / 16.1bar
Hydraulic Test Pressure
2.1MPa / 21bar
Air-Tightness Pressure
1.61MPa / 16.1bar
Truck Brand
Dongfeng, Sinotruk, FAW, Forland
Truck Engine
120HP Dongfeng Diesel
Gearbox
6 Forward & 1 Reverse
Tire
7.00r16, 7.00-16
Dispensing System
Pump, Flowmeter, Filling Hose
Pump
Hydraulic Pump 2"
Flowmeter
Liquid Control LC, or Chinese Brand
Transport Package
Naked Package
Specification
5000 Liters
Trademark
CLW
Origin
China
HS Code
8705909090
Production Capacity
100 Untis /Month

Product Description

Product Description

Gas Dispensing Delivery Truck Small 2Ton Moible Gas Refilling Truck
Brand: Dongfeng Tank Capacity: 2.5Ton to 3Ton Tank Volume: 5,000Liter to 8,000Liters Engine: Cummin or Chaochai Engine, EURO 2 or others Gearbox: 5 Forward Gear & 1 Reverse Gear Corken or Blackmer Truck Pump with Hydraulic Driving, Displacement LPG Flow Meter with 2" 15meter Rubber Hose with REGO Filling Nozzle. Specifications Detail of the truck
Item No. Parameters
Cabin Single row,left hand drive
Overall Dimension 5900x2045x2600 mm
Gross Vehicle Weight 6495kg
Curb Weight 3050kg
Payload 3445kg
Wheel Base 3300 mm
Engine Chaochai engine, 4 in-line cylinder
Engine horsepower CY4102-C3F,95 HP EUROIII
Displacement 3856mL (Diesel)
Max Driving Speed 80 km/h
Tire 7.00-16,7pcs
LPG tank
Volume: 5cbm
Tank material: Q345R
Tank diameter: 1600mm
Tank thickness: 10mm
Tank length: 3059mm
Filling gas Propane(LPG)
Design Pressure: 1.61Mpa
Filling parts
LPG Pump 1
Flow meter 1
Pipeline 15m
Filling gun Suitable for filling cylinders.You can change gun as per local condition
Accessory
Manhole 1
Safety Valve 1
Tool Box 1
Valve Box 1
Thermometer 1
Pressure Gauge 1
Emergency Valve 1
Fender Steel
Fire Extinguisher 2
Anti-static Tape 1
Paint As required
Standard
Pressure vessels, Supervision Regulation on Safety Technology for Pressure Vessels
