CNC Hole Milling Drilling Machine for Door Window Making

Product Description

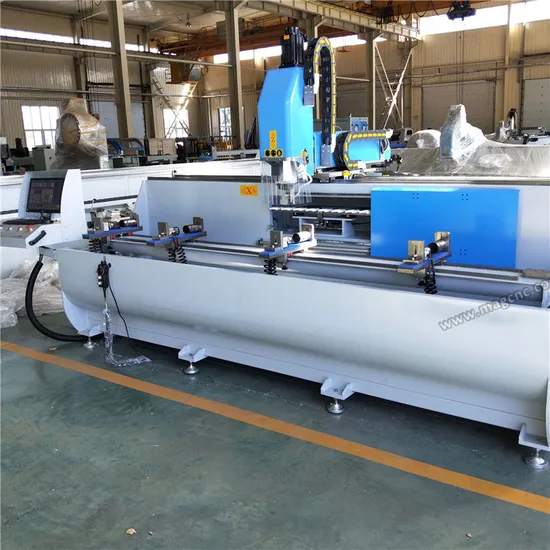

3 Axis CNC Processing Center Aluminum Processing Machine
Product Description
1.1 This machine is designed for processing round holes,slots,keyhole etc on aluminum profile,window-door
and curtain wall industry,it is also suitable for processing milling,chagrining,engraving plane surface and
other procedure.
1.2 Main spindle adopt air-cooling electric main axis,9kw power , have the function of high precision, high safety and high reliable.
1.3 Adopt Taiwan SYNTEC CNC control system.Have professional CAD-CAM programming software.
It can transform processing code automatically,have the function of easy operation,high efficiency and
lower labor intensity.
1.4 Imported guide rail,sliding block,X axis adopt high precision oblique gear and rack driving.Y and Z
axis adopts high precision ball screw drive.The drive is stable,so can improve the precision of whole
machine.
1.5 Inside blades storage can hold 6-8 sets blades,the handle is approved ISO 30 standards,it is very
safety and reliable.Three faces processing, When processing deeply hole (hetero type hole ), it can realize deeply hole processing through overturn worktable, so can highly improve processing efficiency.
1.6 Adopt manual pump oil supply system,blades adopt system control system control spray cooling
device.
1.7 The main electrical parts:circuit breakers,AC contactor are all SCHNEIDER brand.
1.8 The main components adopts steel structure and they are all through aging treatment.
1.9 The worktable can overturn 180, -90,0,+90 degree, clamping one time profile can realize three faces processing.
Product Parameters

Parameter
Air Pressure	0.5~0.8MPa
X/Y/Z Axis stroke	3000mm*500mm*330mm
Input Voltage	380V 50Hz or As Customer need
Input Power	3KW Air Cooling Spindle(6kw Spindle for optional)
Main axis rev	18000rpm
Main axis power	S6: 9KW S1: 7.5KW
Suitable Milling Cutter Diameter	ER 25: from 2mm to 16mm; ER 32: from 3mm to 20mm
Processing range	200*200
Overall size	4180×1600×2250mm
Weight	1550kg

Main accessory
Control system	Taiwan Syntec
Solenoid valve	Airtec
Cylinder	Airtec
Air Filter Device	Airtec
Electrical Button and Switcher	Schneider
AC Contactor and Circuit Breaker	Schneider
Approach Switch	Taiwan Delta
Guide rail	Taiwan Hiwin

Remarks
1. All the electrical elements,Circuit breaker protection and AC contactors are schneider or other world famous brand.
2. International CE standard high flexibility, high shielding cables.
3. Warranty time: 1 year
4. Quotation Valid: 90 days
5. Payment terms: 30%T/T as deposit, 70% balance made before shipment by T/T
6. Delivery time: 30 days upon receipt of 30% deposit by T/T
7. Packaging: Film packaging and fumigation-free wooden case(if delivery by full container load, then without wooden box, just use the tray)
8. After sales service:
1)24 hours service on Internet and Telephone, free instructions and problem solving
2) Free training to make sure a master of the operating of cnc router for the person who come to our factory
3)User-friendly English manual or operating video for machine using and maintaining
4) on-the-spot training, installation and repairing can be met if required.(If so, need the buyer afford the visa and air ticket and 100USD/DAY Salary)

Detailed Photos
Sample:
Packaging & Shipping
Company Profile
Customers
Exhibition

---
