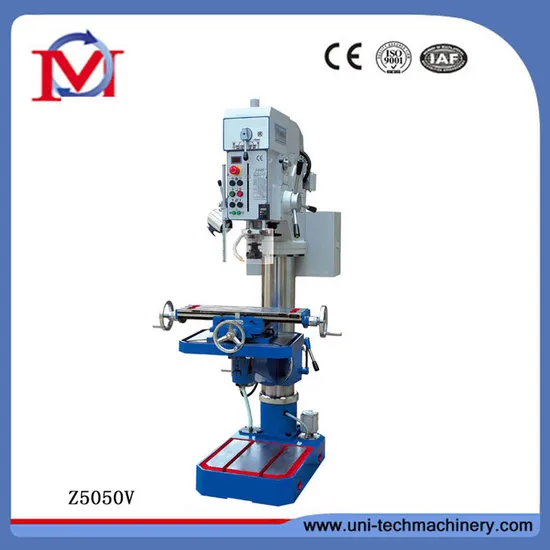

Stepless Spindle Speed Vertical Drilling Machine for Metal (Z5050V)

Product Description

Stepless spindle speed vertical drilling machine for metal (Z5050V)
1.Specifications:

Model	Z5040V	Z5050V
Max. Drilling dia.(steel) and tapping dia.(mm)	Φ40/M24	Φ50/M32
Max.Travel of spindle(mm)	200	200
Max.Distance from spindle to generating line of column(mm)	360	360
Max.Distance from spindle nose to surface of worktable.(mm)	590	590
Max.Distance from spindle nose to surface of base worktable(mm)	1175	1175
Max Travel of worktable and bracket/Manual(Mechanical)(mm)	530(410)	530(410)
Swivel angle of worktable	±45°	±45°
Spindle taper bore	MT4	MT4
Spindle speed steps	Stepless	Stepless
Spindle speed range(r/min)	50~2200	50~2200
Spindle feed steps	4	6
Spindle feed range(mm/r)	0.1;0.2;0.3;0.4	0.08~0.50
Dimension of worktable(mm)	580×460	580×460
Effective working area of worktable(mm)	445×435	445×435
Diameter of column(mm)	Φ160	φ180
Power of motor(kw)	2.2	3
Machine dimension(mm)	940×680×2405	950×680×2405
Packing dimension/Net weight and gross weight(mm)	1170×680×2300	1170×680×2300

2.Features:
1.3-phase with two- voltage for 220V~575V collocation
2.All main parts are made with quality cast iron
3.Single-speed motor, Germany original Lenze transducer spindle stepless timing for ZWB series.
4.Strength spindle, large diameter column,Trochoid lubrication pump
5.Worktable could be rotated and could be inclined ±45°
6.Motor driven lifting of worktable.
7.Digital readout for the display of speed and cutting depth
8.Micro feed is available.
9.Coolant System and fender device
10.Supply accessories Φ6~Φ16mm collet, handle of milling cutter,cross worktable,handle of collet, nut for t-slot, inner haxagon bolt
11.Importable electrical components with CE,CSA and UL standard
12.The model with A is electromagnetism clutch transmission feed, with B is mechanical feed.
Standard accessories:
1.Key type drill chuck
2.Connecting bar for drill chuck
3.Shaft sleeve for taper shank tool
4.Wedge for taper shank tool
5.double open end spanner

Optional accessoreis:
1.Cross worktable
2.125mm precision vice
3.Germany original Lenze transducer
4.Collect and handle of milling cutter
5.Rotation worktable
Warranty time: 12 months
Welcome to contact us to get more details.
