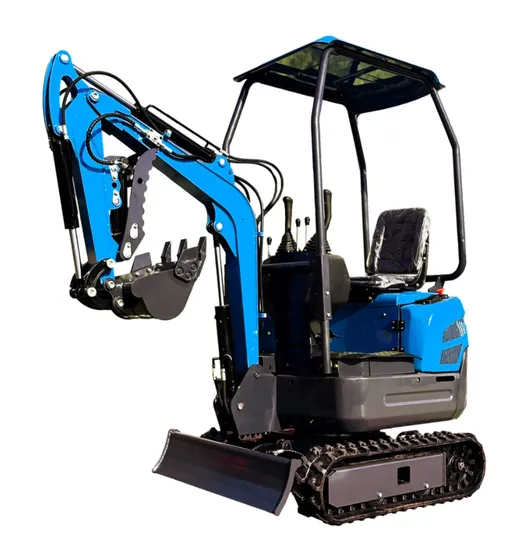

5ton Crawler/Wheel Mini/Small Compact Hydraulic Backhoe/Digger New CE/EPA/Euro 5 Engine Mini Excavator 4ton Farm Garden Use Wholesale Small

Product Description

Engine type: RATO 420
Power types:Single cylinder, four stroke, air-cooled, vertical
Lower oil cylinder,Hydraulic thumb clamp, mechanical operation
Bucket capacity (m³): 0.03
Rated power/speed (kw/rpm) : 8.8/3600
Horsepower (HP):12
Fuel types:gasoline
Maximum excavation height (mm): 2560
Maximum unloading height (mm): 1800
Maximum excavation depth (mm): 1700
Overall machine size (mm):2500*1000*2200
Details Images
The product supports customization, with customizable engine, accessories,colors, and other configurations for your needs tochoose from
Product Paramenters

Model	SDL08	SDL12	SDL15	SDL17
Operation weight	800kg	1200kg	1500kg	1700kg
Engine	Koop/Laidong/Kubota	Koop/Laidong/Kubota	Koop/Laidong/Kubota	Koop/Laidong/Kubota
Power	8.6kw	8.6kw	8.6kw	29kw
Bucket capacity	0.025m³	0.025m³	0.025m³	0.025m³
Machine size	2000*720 *1150mm	2130*960 *2250mm	2200*1100*2150mm	2280*1100*2200mm
Max.dig depth	1300mm	1650mm	1650mm	1900mm
Max.dig height	2400mm	2580mm	2550mm	2820mm
Min.swing radius	1100mm	1190mm	1190mm	2500mm
Max.dig radius at groundine	2540mm	2500mm	2500mm	2600mm
Grade ability	30°	35°	35°	35°

All accessories are available here.
Support Multi-Function Operation, Cabin,Air conditioning,Swing boom , Telescopic crawler track function can be optional. Use our
Quick coupler(quick hitch) can add the attachment tools like: driller auger, hydraulic breaker hammer, trailer,20cm--100cm bucket,
rake,gripper, wood grab and so on.
Customization and Accessories
OEM&ODM Customize: Color/ Size/ Wheel / Packaging/ Function


Company Profile
Collaborative customer cases
Certifications
Customer Feedback
All accessories are available here. Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
FAQ
Q: Are you manufacture A: Yes,we are factory with more than 8 years of manufacturing experience .
Q: What is your terms of payment? A: T/T 30% as deposit, and 70% before delivery. We'll show you t
Q: What is your terms of delivery? A:EXW, FOB,CFR, CIF.
Q: How about your delivery time? A:Generally,it will take 7-10 working days after receiving your
Q: What is your terms of packing? A:Generally, we use standard exported wooden case for LCL goods
Q: Do you test all your goods before delivery? A:Yes, we have 100% test before delivery.

---
