UK Deepsea Dse8610 Synchronising & Load Sharing Control Module

Product Details

Product Description

Product Description

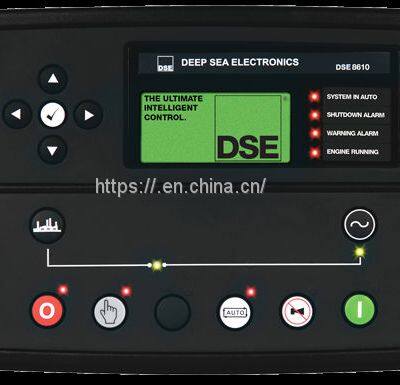

UK Deepsea Dse8610 Synchronising & Load Sharing Control Module
Features:
The DSE8610 is an easy to use multi-generator loadshare system, designed to synchronise up to 32 generators including electronic and non-electronic engines.
The DSE8610 monitors the generator and indicates operational status and fault conditions, automatically starting or stopping the engine on load demand or fault condition.
System alarms are annunciated on the LCD screen (multiple language options available), illuminated LED and audible sounder.
The DSE8610 MKII represents the latest in complex load sharing & synchronising control technology. Designed to handle the most complex grid type generator applications the DSE8610 MKII control module is packed with multiple features and benefits that are unrivalled across the generator control industry.
OVERALL SIZE:
245 mm x 184 mm x 51 mm (9.6" x 7.2" x 2.0")
PANEL CUTOUT SIZE
220 mm x 160 mm (8.7" x 6.3")
MAXIMUM PANEL THICKNESS
8.0 mm (0.3")
WEIGHT
0.88kg
PRODUCT VARIANTS
8610-02 - 8610 MKII Synchronising & Load Sharing Control Module (Ct, Rtc)
8610-03 - 8610 MKII Synchronising & Load Sharing Control Module (Ct, Rtc, Htr)

---
