Groove Mixer for Cosmetic Mixing

Product Description

Mixer introduction
CH type mixer is widely used for mixing powder or wet raw materials and can make the main and auxiliary raw materials with different proportion uniform.

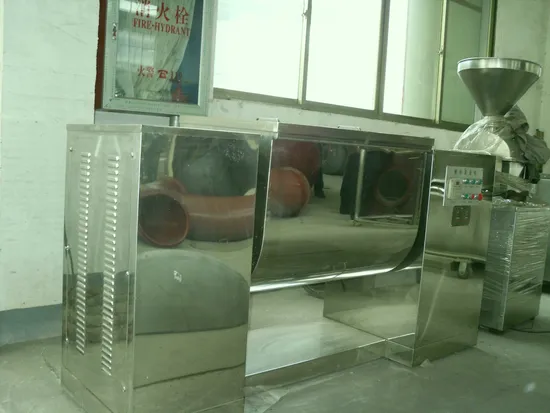

Groove mixer for mixing powder or paste material, so that the different quality of material mixed. Is a horizontal trough single paddle mixing, stirring paddle was shaking through the shaft, easy to clean. Contact with the object of the whole made of stainless steel, it has good corrosion resistance, mixing tank can automatically flip down to discharge the material.
Characteristics
The places where contact the raw materials are made of stainless steel.The gap between blades is small and there is no dead corner. At the ends of stirring shaft,there are seal devices.It can prevent from the raw material leakage.
Material to be dried
It is widely used for pharmaceutical,chemical,foodstuf f and so on industries
Technical Parameter

capacity(L)	100	150	200	400
power of motor(kw)	2.2	3	3	5.5
speed of stirring(rpm)	24	24	24	24
inclined(×)	105	105	105	105
weight(kg)	350	500	650	1200
overall dimensions(mm)	1400×500×1000	1600×600×1100	1800×700×1200	2000×820×1460

The bulk density of material is made based on 0.6g/cm3, Please point out if it's over .

---
