Single Side Horizontal Marine Anchor Windlass

Product Description

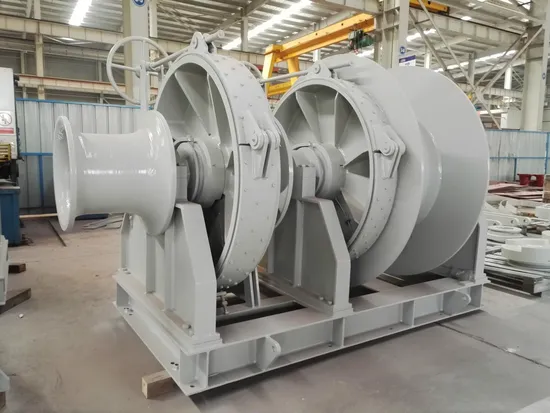

Marine hydraulic windlass
Product Description
The anchor windlass is installed on the main deck at the bow and stern of the ship, and is used for anchoring and mooring when the ship is anchored.
The windlass mainly consists of a base, a bracket, an anchor chain wheel, a brake, a sprocket, a gearbox, an electrical control system (excluding manual windlass), etc. The electric windlass has an electric motor, while the hydraulic windlass has a hydraulic pump station.

Our Advantages
(1) It has good speed regulation performance.
(2) Low speed and high torque hydraulic motor is usually used, with low speed and large output torque. It is no longer necessary to set a huge mechanical reducer, and can directly drive the chain wheel.
(3) The hydraulic transmission has self braking performance and is safe and reliable.
(4) Compact structure, small weight and size per unit power
(5) It is easy to operate and maintain.
(6) Easy remote control and automation

Product Parameters

Model	Dia. of chain wheel	Working load		Overload pulling force		Holding load		Nominal speed	Warping load
		AM2	AM3	AM2	AM3	AM2	AM3
17.5	17.5	13	14.6	19.5	21.9	80	115	9	8
19	19	15.3	17.2	23	25.8	95	135	9	10
20	20	17.9	20	26.9	30	110	157	9	10
22	22	20.6	23	30.9	34.5	126	180	9	15
24	24	24.5	27.4	36.8	41.1	149	214	9	20
26	26	28.7	32.1	43.1	48.2	175	250	9	20
28	28	33.3	37.2	50	55.8	202	289	9	20
30	30	38.3	42.8	57.5	64.2	231	330	9	30
32	32	43.5	48.6	65.3	72.9	261	374	9	30
34	34	49.1	54.9	73.7	82.4	294	421	9	30
36	36	55.1	61.6	82.7	92.4	329	470	9	30
38	38	61.4	68.9	92.1	103.4	365	522	9	40
40	40	68	76	102	114	402	576	9	40
42	42	75	93.8	112.5	125.7	442	632	9	50
44	44	82.3	92	123.5	138	483	691	9	50
46	46	89.9	100.5	134.9	150.8	526	753	9	50
48	48	97.9	109.4	146.9	164.1	570	816	9	50
50	50	106.3	118.8	159.5	178.2	617	882	9	50
.......	.......	.......	......	......	......	......	......	......	......
78	78	258.6	289	387.9	433.5	1416	2026	9	125

Product Expansion
Our company can design and produce hydraulic, electric, and diesel driven anchor machines for various loads according to customer requirements.
We also provide anchor and mooring combined windlass.This product mainly consists of three parts: power unit, actuator, and control system. Suitable for bulk carriers, container ships, oil tankers, LNG ships, roll on/roll off ships, etc. Our company can design and manufacture various hydraulic or electric driven anchor mooring combined windlass according to customer needs.
Packaging & Shipping
After Sales Service
Our After-sale Services-- within 24 Hours:
(1) Before--Sale Service :
01:Quality Control: Strictly Production Request base on signed contract ;
02:Delivery Time: Guarantee within contracted delivery time ;
03:Photos: Send photos to our customer after finish production and packing ;
04:Packing Details:Give complete packing size table to our customer;
05:Brand: Respect our customers' advice to use our customers' own brand & logo ;
06:Documents:Provide high efficiency service to post you all required customs clearance documents by DHL or TNT .
(2) After--Sale Service :
01:Reply : Fast reply all your questions on line or by email or by telephone ;
02:Quality Problems:Our factory is responsible for any problems if it is resulted by our reasons (Such as give you free new parts to repair it or give enough some compensation cost to you) ;
03:Safe Operating: Pls remind your customers to respect our Operating Manual to operate our machine rightly, to guarantee Safe when operate our machine.

---
