TM-MINI one color one head tabletop pad printer for notekook printing

Product Details

Product Description

Product Description

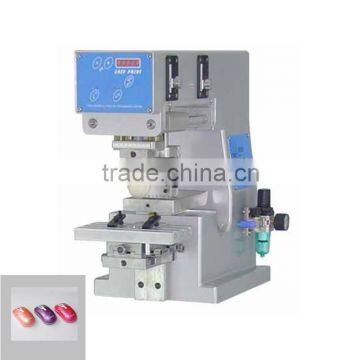

TM-MINI one color one head tabletop pad printer for notekook printing
This notebook printer is one of our hottest machines, is also widely used in printing machinery
Technical parameter:

Model No.	TM-MINI
Plate size	100X100mm
Worktable size	200X120mm
Max printing diameter	DIM 80mm
Max printing speed	2100pcs/h
Air consumption	91 litre/min (5bar)
Power	110/220V 60/50Hz 50W
Dimensions	510X310X420mm (LXWXH)
Weight	45kg

Features:
1.SCM IC complile action program, kinds of printing model options
2.Auto 4-digit counter built-in, and stat. Printing quantity
3.Airframe adopts coin alloy, and metal coating surface
4.Worktable,plastic head and ink tray can be adjusted X.Y.Z direction
5.Sucking ink and the pressure of printing pad can be adjusted independently
6.The distance of scratching ink is adjustable
7.It has function of leveling ink by sliding automatically on front /back, this can avoid printing ink partial solidification
8.The speed of all the cylinders have an independent regulator intortum
9.Adopts original Japan SMC and Taiwan MINDMAN pneumatic component
10.Each adjustable location has scale logo
11.The machine is running fast, it is steady and low voice.
Advantages:
The pad printer is adopted no pedestal designed with cabinet sharp and fast printing speed. Installing several sets in smaller factory can make a production line for printing products. Moreover, it is more economic, reducing investment cost.
Application:
It is suitable for printing electronic products, plastic shell, hardware products, stationary, small arts and crafts, logo on the surface of gift.
Additional Info.
Price Terms : FOB, CFR, CIF
Payment Terms : Western Union, T/T or L/C
Packing : Carton
Lead Time : Within 5 days
Standards Certificate : ISO9001-2000,CE
Warranty: one year

---
