CNC Fiber Laser Cutting Machine Stainless Steel Iron Metal Cutting Machine

Product Description

Product Description
Due to the versatility of the VLF1325LC, it is play an important role in the cutting of sheet metal and non-metallic materials such as wood and Plexiglas-glass. For machines that require metal and non-metallic materials, this machine is the best choice.
Stainless steel, carbon steel, alloy steel copper, brass, silicon steel, galvanized steel sheet, nickel titanium alloy, inconel, titanium alloy, acrylic, MDF, Die board, etc.
Machine Mode:VLF1325LC
laser power:1000-1500w
Fiber laser source :150w CO2 laser source
Dimensions:3800*1850*1300
working area:2500mm*1300mm
Repeat positioning accuracy:±0.02mm
Max speed:60m/min
Max acceleration:1.0G
Voltage and frequency:220V/380V 50Hz/60Hz
Product Parameters

Machine model	VLF1325LC
Laser power	1000W 1500W 2000W(Optional)
	150W CO2 Laser Tube
Dimensions	3800*1850*1300mm
Working area	1300mmx2500mm
Repeated positioning accuracy	±0.02mm
Max. running speed	60m/min
Max. acceleration	1.0G
Transmission mode	Screw drive
Specified voltage and frequency	380V/50Hz/60Hz/60A

Sample Show

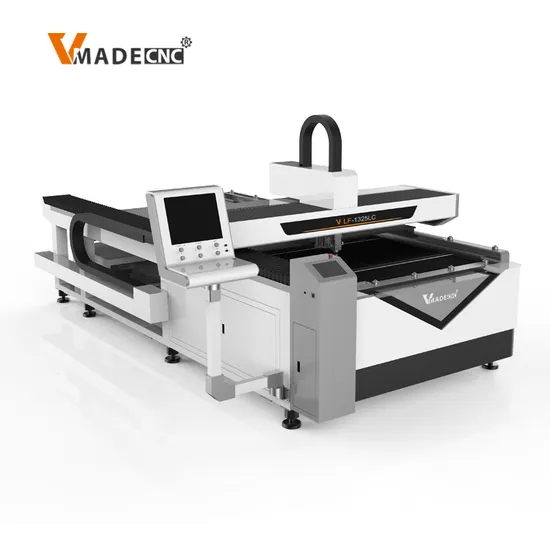

VLF1325LC is open type fiber and CO2 laser cutting machine with 1300*2500mm working area, which consist of machine bed, Au3tech laser head, Delta servo motor, Ipad computer. With one machine, you can cut both metal and nonmetal.The gantry we use on LF1325LC is aviation aluminium gantry, which have high stability and accuracy. The machine weighs 2000kgs, which can stand 300kgs single plate cutting. This model has highest cost-effective.
1.Anti-collision package edge: All parts of the machine are covered with some soft materials, mainly the use of pearl wool
2.Fumigation wooden box:Our wooden box is fumigated, do not need to check the wood, saving the transport time.
3.Whole film packaging machine: Avoid all damage that may occur during delivery. Then we will cover the plastic package tightly to ensure that the soft material is covered intact, also avoiding water and rust.The outermost is a wooden box with a fixed template.
4.Wooden box at the bottom of a solid iron socket for easy handling. Packaging & Shipping
FAQ
1.What is fiber laser cutting machine ? A fiber laser is a special type of solid state laser.
Generally, fiber lasers are optically pumped. This is done by coupling the radiation of diode lasers or other fiber lasers into the cladding or the core itself in a direction parallel to the fiber core. In many cases, double clad fibers are used in order to achieve higher output power.
2.What's material can fiber laser cut?
All kinds of metal, such as Stainless Steel,Carbon Steel, Mild Steel, Galvanized Steel, Aluminum, copper, etc.
3.Which fiber laser source does VMADE applied?
IPG - Made in Germany.
Raycus- Made in China;
Maxphotonics - Made in China

---
