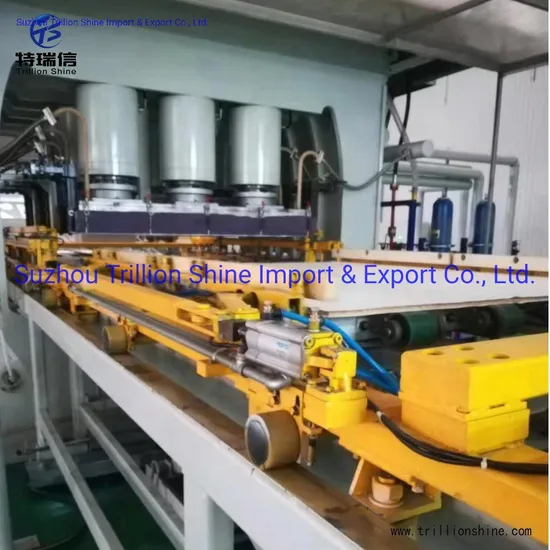

Fast Short Cycle Laminating Hydraulic Press Machine/Laminate Press Machine /Hydraulic Short Cycle Melamine Hot Press Machine/Laminate Hot Press Machine

Product Description

Application:
The fast short cycle laminating hot press line is for double-sided lamination of MDF-boards and particleboard with melamine resin impregnated papers n a short cycle process.
Features:
It is suitable for fast laminating. quickly opening, closing, quickly pressurizing and short auxiliary time.
Stable high-speed operation, Max capacity: 120 sheets /hour
Only need one person for operating the full production line.
Flow chart:
According to customers' requirement.
Parameter:

Board size (feet/mm)	4'x6'	4'x8'	4'x9'	6'x8'	6'x9'	6'x12'	7'x9'
	1220x180	1220x2440	1220x2750	1830x2440	1830x2750	1830x3660	2100x2750
Hot platen size (mm)	1400x2000	1400x2600	1400x2900	1950x2660	1950x2920	2000x4000	2300x2900
Heat consumption (kcal/h)	20x104	20x104	20x104	30x104	30x104	40x104	40x104

The melamine laminate's surface finish is determined by the caul plate, and can be matt, satin,
glossy,suede, stone grain, wood grain and other exotic finishes.

Guidance of choosing pressure
Specfic pressure level	Matt/glossy	Suede	Normal Wood grain	Normal Engraving	Deep Engraving	Normal flooring	Deep flooring
30kg/cm2	√
40kg/cm2	√	√	√
50kg/cm2	√	√	√	√
60kg/cm2	√	√	√	√	√
70kg/cm2	√	√	√	√	√	√
80kg/cm2	√	√	√	√	√	√	√

Detailed Show:
What services to offer:
1. Provide customerization.
2. One year warranty for the machine. Liftetime after-sales service and technical support.
3. Professional team for guiding installation& commissioning.

---
