US$1,360.00-5,980.00
|
1 Piece
(MOQ)
|
Basic Info.
Indoor Machine Noise
36-49dB
China Energy Efficiency Standard
Level 3
Cooling/Heating
Cooling/Heating
Refrigerant
R410A/R407c/R134A/R22/R404A
Compressor Type
Scroll Type
Condenser
Blue Aluminum Fin
Evaporator
High Efficiency Tank Type
Electric Parts
World Famous Brand
Refrigerant Valves
Emerson
Running Condition
-30 Degree C
Colour
White(Standard) or Others
Transport Package
Plywood Package Unit
Production Capacity
6000PCS/Year
Packaging & Delivery
Package Size
1113.00cm * 594.00cm * 977.00cm
Package Gross Weight
120.000kg
Product Description

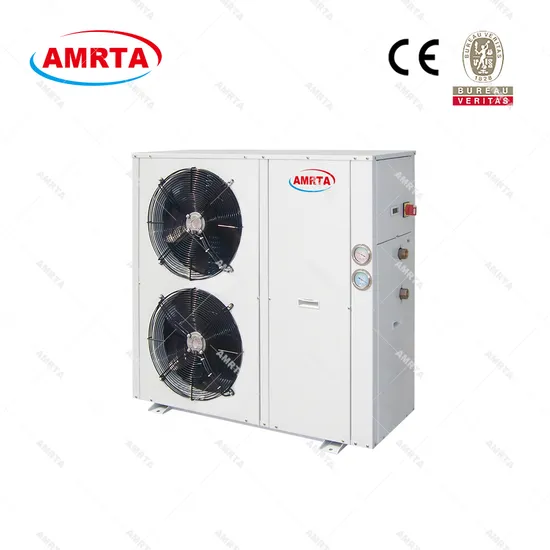

55~60C Water Outlet DC Inverter Evi Air to Water Package Air Source Heat Pump
Heating Capacity 10 kW ~ 20 kW
Product features
Compressor
DC inverter type compressor
EVI technology
Enhanced vapor injection technology, heat pump can work -30oC ambient temperature
Refrigerant
R410A refrigerant, more environmental
Stable and reliable
Simulation optimization + test verification, more stable and reliable
Compact design
Use tank type heat exchanger
Low noise fan
For lower ambient temp working
Professional control, more reliable, adaptive control for EXV
Heat exchanger design
More safety
Over 7 protections
Reliable EXV
Specifications
| Model | AW10 | AW14 | AW17 | AW20 |
| Ambient temperature DB/WB | Hot water |
Capacity |
Unit |
Packaged type |
| 7oC/6oC | 41oC | Heating | kW | 11.2 | 18.9 | 19.8 | 20.7 |
| Power input | kW | 3.1 | 5.4 | 5.8 | 6.4 |
| -12oC/-14oC | 41oC | Heating | kW | 7 | 11.9 | 12.9 | 13.9 |
| Power input | kW | 2.95 | 4.9 | 5.2 | 5.6 |
| -20oC/--oC | 41oC | Heating | kW | 5.9 | 9.6 | 10.7 | 11.2 |
| Power input | kW | 2.9 | 4.6 | 5.3 | 5.5 |
| 35oC/--- | 7oC | Cooling | kW | 8.7 | 12.5 | 13.5 | 14.9 |
| Power input | kW | 3.0 | 4.4 | 4.8 | 5.6 |
| Standard heating COP/IPLV | W/W | 2.37/2.83 | 2.43/2.86 | 2.48/2.87 | 2.48/2.88 |
| Max power input | kW | 5.5 | 8.5 | 8.5 | 8.5 |
| Max working current | A | 20 | 40 | 40 | 40 |
| Compressor type/Brand | DC inverter type/Highly |
| Compressor quantity | 1 |
| Fan | Low Noise axial type |
| Fan quantity | 1 | 2 | 2 | 2 |
| Heat exchanger | Tank type |
| Inlet/outlet water pipe size | G1 | G1 | G1 | G1 |
| Water flow rate | m3/h | 1.5 | 2.14 | 2.32 | 2.56 |
| Water resistance | kPa | 22 | 42 | 49 | 57 |
| Refrigerant | Type | R410A |
| Charge amount | kg | 4 | 5 | 5 | 5 |
| Min/Max Ambient temp | Cooling | oC | 21-43 |
| Heating | oC | -30-21 |
| Min/Max Hot water | Cooling | oC | 7-24 |
| Heating | oC | 25-60 |
| Min/Max working water pressure | MPa | 0.05-1 |
| Power supply | 220V/1/50Hz |
| Dimension(L×W×H) | mm | 1113x594x977 | 1113x594x1477 |
| Noise level | dB(A) | 64 | 66 | 66 | 66 |
| Net weight | kg | 120 | 160 |
