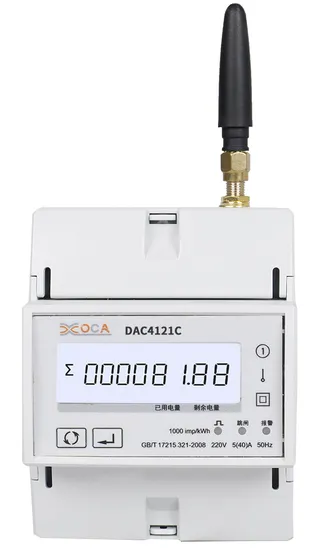

Dac4121c DIN Rail Tuya Single Phase Wireless Digital Smart Energy Meter

Product Description

DAC4100 SERIES
Application The meter is designed to measure single phase two wire AC active energy like residential , utility and industrial application. It is a long life meter with the advantage of high stability , high over load capability , low power loss and small volume .
Prouducts character
1. max current:80A DC.
2. Standard 4-modulus width,TH35-7.5 type rail installation
3. Multi-function parameter measurement, providing voltage, current, active power, reactive power, apparent power, power factor, phase Angle, etc
4. Support two-way electric energy metering, provide monthly electricity consumption statistics for the last 12 months, and daily electricity consumption statistics for the last 31days
5. In-built relay, support remote control and prepaid management control,providing latest 50 times opertation records,10 SOE event records
6. Support the power consumption parameter monitoring and alarm function
7. Support WIFI,LoRa,NB-IoT,4G etc. wireless communication way
8. Support 1 pulse output, 1 RS485 communication
Technicial parameters

Model	DAC4100C/DAC4101C/DAC4121C/DAC4120C
Electrical Characteristics	Rate voltage (Un)	110V or 230V AC
	Operational voltage	85 to 275V AC
	Overload capacity of voltage	2*Un for 1 second
	Rate current(Ib)	5A
	Maximum current(Imax)	80A
	Operational current	0.1%Ib to Imax
	Overload capacity of current	30*Imax for 0.01 second
	Operational frequency range	45 - 65Hz
	Power consumption	<2W/10VA
	Pulse constant	1000 imp/kWh
	Display	LCD with backlight
	Maximum reading of energy	999999.99 kWh/kVarh
	Measure type	Single phase two wire
Measurement accuracy	Voltage, Current	±0.5%
	Active power	±1.0% or 0.5%
	Reactive power	±2.0%
	Apparent power	±1.0%
	Active energy	±1.0% or 0.5%
	Reactive energy	±2.0%
	Power factor	±1.0%
	Frequency	±0.2%
Environmental Characteristics	Operating Temperature	-25 to +55ºC
	Storage Temperature	-40 to +80ºC
	Humidity	< 90%, non-condensing
	Pollution Degree	2
	Altitude	Up to 2000m
	Vibration	10 Hz to 150Hz, IEC 60068-2-6
	IP Degree of Protection	Designed to IP51 front display, IP30 meter body
Electromagnetic Characteristics	Electrostatic Discharge	±8kV(contact discharge),±15kV(air discharge); Level 4, according IEC 61000-4-2
	Immunity to Radiated Fields	10V/m,80 - 2000MHz; Level 3, according IEC 61000-4-3
	Immunity to Electrical Fast Transients	±4kV; Level 4, according IEC 61000-4-4
	Immunity to Surges	±4kV; Level 4, according IEC 61000-4-5
	Immunity to Conducted Disturbances	10V,0.15 - 80MHz; Level 3, according IEC 61000-4-6
	Immunity to Magnetic Fields	IEC 61000-4-8
	Immunity to Voltage Dips	IEC 61000-4-11
	Radiated Emissions	Class B, according EN55011
	Conducted Emissions	Class B, according EN55011
	Harmonics Emissions	IEC 61000-3-2
Safety	Overvoltage Category	CAT III, according IEC 61010-1
	Measurement Category	CAT III, according IEC 61010-1
	Insulation	AC Voltage Test: 4kV for 1 minute
		Impulse Voltage Test: 6kV - 1.2/50µS waveform
	Protective Class	II, according IEC61010-1
Communications	Interfaces standard and protocols	2-wire RS485, Modbus RTU Optional: Mbus
	Buad rate	1200 to 9600 bps, default is 9600 bps
	Parity bit	None, Even, Odd, default is None
	Stop bit	1 or 2, default is 1
	Response time	<100ms
	Transmission mode	half-duplex
	Transmission distance	Up to 1000m
	Max. Bus loading	32 pcs
Wireless communications	Types that can be supported	WIFI, LoRa, NB-IoT, 4G
Pulse output	Interface type	Open collector optocoupler
	Pulse constant	Per pulse equal 0.001/0.01/0.1/1 kWh/kvarh (Configurable)
	Pulse width	60/100/200 milliseconds (Configurable), default is 100milliseconds
	Pulse output type	Import/export/total active energy, Import/export/total reactive energy (Configurable)
	Class	Class A, according IEC 62053-31
	Input voltage	5 to 27 VDC

Company Profile Zhejiang Xinghao Technology Co., Ltd., founded in 2009, is a power meter manufacturer and energy management solutions provider in China. The company specializes in research and development, production and sales of a full spectrum of energy management products, including: Power meters (regular and prepaid); Power monitoring systems; Intelligent transformers, and Internet of Things communication equipment, among others.With an R&D-centric culture and strong leadership, our team has developed over 30 IPS since 2019, including patents, smart power solutions and proprietary software. As an attestment, our company has been recognized by the provincial government as a National High-Tech Small and Medium-sized Enterprise (SME) - a status awarded to SMEs with the highest innovative potentials.We understand the importance of delivering products of consistent quality to our valued customers. To this end, we have built up our in-house engineering and testing lab, and have developed a holistic quality control and risk management system to ensure engineering excellence. In addition, our manufacturing process adheres to the ISO-9001 standards. We have maintained a long-term relationship with internationally renowned laboratories, our products have been certified by CE, MID (EU appliance measurement directive), UL, KEMA, RoHS, etc.Since 2009, we have developed a comprehensive product line, including single-phase, three-phase AC/DC power meters, digital power analyzers, data collectors, automatic meter reading systems, energy monitoring and management systems, and other customized solutions. Over the years, we have delivered high-quality products and services to our clients and built good relationships with customers in over 50 countries and regions at home and abroad. As a provider of trusted products and solutions, Xinghao Technology offers not only the existing product line and services, but also customized solutions to meet all of your needs.
Certificatete
PACKAGE Our standard packaging, customized packaging available upon request. FAQ Q1: If I'm interested in your LED three phase full power meter, when can I receive your quotes and detailed information after sending the initial inquiry? A: We will aim to respond to all requests within 24 hours. Q2: Can I get a sample to test and verify the quality before placing an order? A: We are confident about the quality of our products and happy to provide samples for your review. Please send us an inquiry! Q3: Are you a manufacturer or a trading company? A: We are a manufacturer with strong in-house R&D capabilities. We offer a full spectrum of services from designing manufacturing to providing exporting logistics. Q4: What's the warranty coverage for your LED three phase full power meters? A: We offer a three year warranty to our customers. Q5: Could you use our logo on the products? A: We are happy to provide such service. Actual pricing will depend on the quantity you order. Please send a request for details.

---
