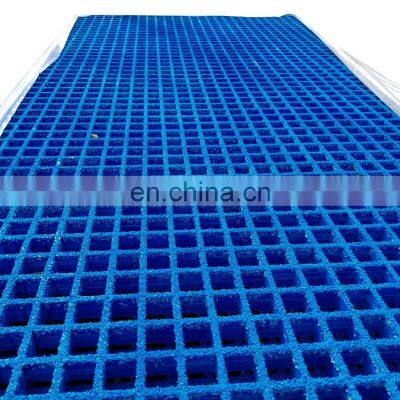

Product Description3660*1220*25mm size fiberglass walkways non slip blue FRP gratingFRP Molded Grating is a structural panel which uses high-strength E-Glass roving as reinforcing material, thermosetting resin as matrix and then casted and formed in a special metal mold. Molded FRP grating consists of continuous glass strands encased in resin and wrapped in a surfacing veil which protectsthe fibers and allows resin to saturate the outermost part of the bar as well as penetrate between the glass fibers. This ensures a smooth and corrosion-resistant surface, with a higher glass/resin ratio than molded products. The individual bars.are then assembled using two-piece cross bars and epoxy to mechanically join the load bars.SpecificationBar Size(Top/Below)Panel Size (mm)Mesh size 38mm*38mm, 25mm thickness6.5/5.0mm1220x3660,1226x4010,1524x4000,1530x4010,1997x3012Mesh size 38mm*38mm, 30mm thickness6.5/5.0mm1220x3660,1220x4010,1524x4010,921x3055Mesh size 38mm*38mm, 38mm thickness7.0/5.0mm1220x3660,1220x4010,2100x4240,998x4010,1220x2440Mesh size 38mm*38mm, 50mm thickness9.5/7.5mm1220x4010,1220x3666,1230x4010,1220x2440,921x3055Mesh size 38mm*38mm, 60mm thickness10.5/8.5mm1230x4010Mesh size 38mm*38mm, 70mm thickness11.0/9.0mm1230x4010Mesh size 40mm*40mm, 25mm thickness6.5/5.0mm1007x3007,1007x4007,1247x4047,1527x4047Mesh size 40mm*40mm, 38mm thickness7.0/5.0mm1527x4047,1247x4047,1007x3007,1007x4047Mesh size 40mm*40mm, 38mm thickness7.0/5.0mm1527x4047,1007x3007,1007x4047,1247x4047Mesh size 50mm*50mm, 15mm thickness6.0/5.0mm1228x4020,1220x3660,1220x2440Mesh size 50mm*50mm, 50mm thickness8.0/6.0mm1524x4000,1220x3660,1220x2440,1220x400013x13/40x40 micro mesh38mm thickness6.5/4.5/5.0mm1527x4047,1247x4047,1007x3007,1007x404719x19/38x38mini mesh38mm thickness6.5/5.0mm1220x3660,1220x2440,921x3055,1220x4000,1226x401025x25/50x50mini mesh50mm thickness8.0/6.0mm1532x4020Production process3660*1220*25mm size fiberglass walkways non slip blue FRP grating1. Stirring raw materialsResin, fiberglass fiber yarn, calcium powder filling, color paste, reagents, etc. are arranged in proportion, stirring for 20minutes.2 . Draw yarnLay the alkali-free yarn layer by layer to improve the strength of the FRP grating.3 . Compression moldThe stirred raw materials are poured into the mold and compacted mechanically or manually.4 . Heat curingAfter the grating is heated for 20 minutes, the raw materials and yarn are fused together.5 . Cooling demoulding, mold liftingAfter the above process is completed, cooling for 10 minutes demolding, mold lifting, semi-finished grating finished.6 . Grinding, painting and washingThe FRP grating is polished and washed with a layer of varnish or water.PackingApplication3660*1220*25mm size fiberglass walkways non slip blue FRP gratingProduct Application:Fiberglass is light weight,height strength,Non-Conductive,Corrosion Resistant,Slip Resistant and No Welding required.Widely used by:Chemical Plants ------ Having excellent resistant to corrosion, FRP grating is extensively used in Chemical Plants.It is mainly used operation platform,walkways,oil storage tanks,power distribution boards and rooms.etc.Manufacture ------ FRP grating can be used as Walkways,Fencing,Racks and shelving,Wash racks,Scaffolding,Drainage pit covers Stairs,etc.Transportaion ------ FRP grating can be used as access ways,Platforms(static resistant),docks,trenches,tanker,Stairs,Freight car flooring fill areas as well as walking surfaces and in work areas,etc.Water and Sewage Water ------ FRP grating are environmentally safe and can be used extensively as filter media support,access walkways,trench Scaffolding,manhole cover,walkovers Scaffolding and Fencing,Stairs,etc.Packing&ShippingWelcome your inquiry about FRP grating anytime.Cathy is always here!
>>
