Precision CE Certified Automatic Wood Grafting Machine for Efficient Assembly

Product Description

Product Description

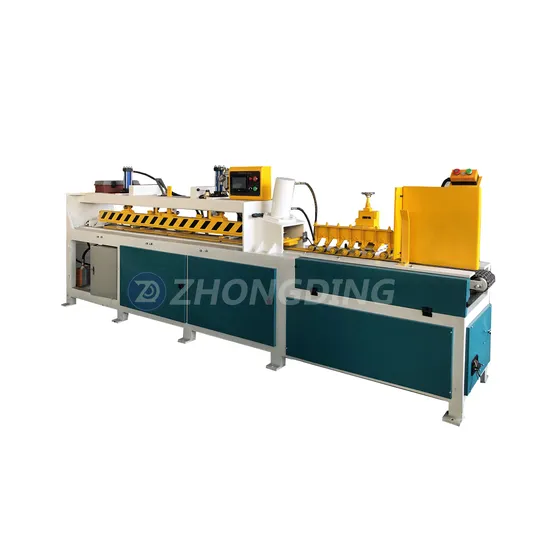

The wood finger joint assemble machine is a special complete set of machines for splicing short wood into longer pieces. It consists of a combing machine and a butt joint machine, assisted by an air compressor.
MH1525
Detailed Photos
The use of a wood finger joint assemble machine can improve the utilization rate of wood, reduce the waste of resources, and achieve the purpose of using short wood for long-term use and inferior wood for high-quality use. The wood finger joint assemble machine uses a special combing machine and a butt joint machine, and is equipped with special glue to make waste wood and short wood re-use. The butt jointed wood can achieve good results. Tests have shown that: its interface strength is greater than the wood itself, the film strength is tough and does not crack, it is green, environmentally friendly and non-corrosive, and can completely replace new wood.
Product Parameters

Model	MH1525
Max working length	2500mm
Max working width	120mm
Max working thickness(height)	70mm
Blade diameter	300mm
Spindle speed	3600r/min
Feeding motor power	1.5kw
Motor power of oil pump	4kw
Saw blade motor power	2.2kw
Weight	1500kg
Overall dimensions	5000*850*1400mm

There are manual and semi-automatic wood finger joint assemble machines our company also provide that you can freely choose.The main difference among them are the oprating way.

Accurate High efficiency Finger Joint Assembly Machine with automatic loading
	Manual	Semi-Automatic	Full-automatic
Max. pressing length	2500mm (Customized to 6000mm)
Max. pressing width	120mm Customized
Max. pressing thickness	70mm
Oil Pump Motor power	1.5kw	4kw
Spindle spped	3600r/min
Saw blade motor power	1.5KW	2.2kw
Feeding motor power	/		1.5kw
Feeding/Docking	Manual		Automatic
Cutting	Manual Control	One touch control	Automatic
Discharging	Manual	Automatic
Air pressure	0.4~0.6Mpa
Weight	1000KG	1200KG	1500KG
Dimensions	3500*750*1200mm	5000*850*1400mm	5000*850*1400mm

Company Profile
Qingdao Zhongding Machinery Co., Ltd. is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years. We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance, spare parts and technical advice. We are committed to providing one-stop service for factory production. Replying on the favorable geographical advantages of Qingdao Industrial Park. We have formed a series of panel-type furniture equipment such as table saws, edge banding machines, and CNC routers, as well as solid wood woodworking machines such as: polishing machines, panel machine, press machine etc, which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East and so on. Bring our products and services for more than 66 countries people and customers. About the payment,I should do the PI for you first,and it has the payment account number of our company, you need to pay a 30% deposit first,when we get the deposit,we will arrange the production of the machine,it takes 20 days. After the production is completed,I will send the pictures of the machine to you,next,you should pay the final payment,and we will arrange the delivery for you.
Certifications

Our Customers

FAQ
1. Do you offer installation?
Our machines are almost assembled before loading in container. It is very easy for installation in your workshop. Video guidance and English manual can be provided freely. Engineers can be sent to service in site if the buyer request.
2. Where can we get replacement parts?Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.
3. How long can we get replacement parts?
Common spare parts can be delivered by express within one week. Some parts can be purchased locally.
4. What technical support do you offer?
1. Technical support by phone, email or WhatsApp around the clock.
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas.
5. Do you have any machines in our country?Our machines have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East and so on. Bring our products and services for more than 66 countries people and customers.6. Can you customized the machine?
Our machines can be customized made according to buyers' request.
7. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like sliding table saw,CNC beam saw machine, wood drilling machine, CNC router ,vacuum laminating machine, sanding machine, hot press machine and so on can be provided as well.
8. Can you set the system to our language?
Our system supports common languages like Chinese , English , Español , Português , Français , Русский язык , Italiano , Deutsch , Nederlands and so on .

---
