Product Details
Product Description
Product Description
【Product Description】
The product has been corrected by strict spectrum and Angle characteristics, stable performance and strong applicability.
The instrument is suitable for the measurement of ultraviolet irradiance in sterilization, lithography, UV sterilization lamp,
mosquito killing lamp water treatment, mosquito killing lamp, shoe factory, leather factory medical treatment, breeding and other fields.
【product feature】
* The spectrum and Angle characteristics are strictly corrected, and the stability is good
* Microcomputer technology, low power consumption, high precision
* Digital LCD display, backlight operation
*The number has a Hold function, Hold key, lock data, easy to record and compare
*The instrument comes with USB cable can be directly
【Product Parameter】

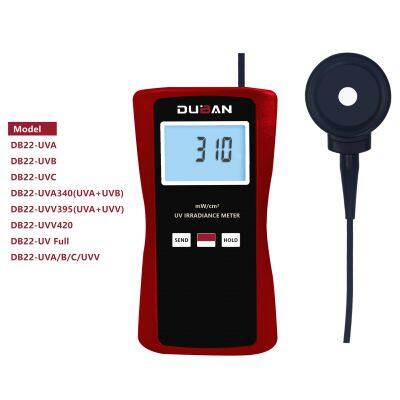

| MODEL | DB22-UVA | DB22-UVB | DB22-UVC | DB22-UVA340
(UVA+UVB) | DB22-UVA395
(UVA+UVV) | DB22-UVV420 | DB22-UV FULL | DB22-UVA/B/C/UVV |
| PEAK | 365±5nm
(Bottom width315-400
| 297±5nm
(Bottom width280-315)
| 254±5nm
(Bottom width200-280
| 340(290-390 | 395(340-420 | 420(395-445 | 365(200-400 | Ultraviolet multiband
(315-400)(280-315)
(200-280)(340-420)
|
| Display | LED |
screenPower
measuring range
| 2.000mW/20.00mW/200.0mW/cm² |
Measurement
accuracy
| ±5 % |
| Resolution | 0.1 mW/cm² |
| Standard line | the line length is 1 meter, and the extension must be customized |
| Sampling time | ≈ 0.5 seconds |
| Temperature | 0-50℃(32-122℉) |
| Humidity | Less than 80%RH |
| Weight | ≈200g(including battery) |
| Size | Host: 140x77x32 mm Sensor:59xφ58mm |
| Power Supply | 1.5AAA*4 batteries |
| Standard | Host, instruction manual, portable case |
| Optional | Bluetooth adapter and software,RS-232 |
>>
