Product Details
Product Description
Product Description
Brand: GE

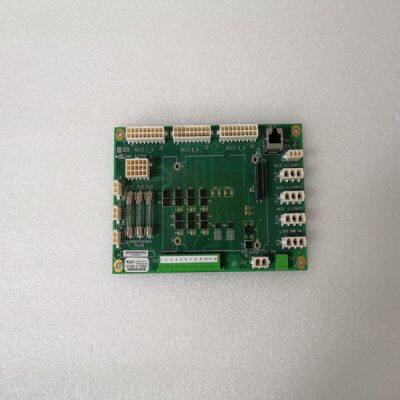

Type:IS200AEPCH1BAA
Origin: the United States
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Module of PLC, DCS, ESD system card, the card is a vibration monitoring system, steam turbine control system module, the advantages of the gas generator spare parts brand: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts of our products are widely used in metallurgy, petroleum, glass, aluminum manufacturing, petrochemical industry, coal mine, papermaking, printing, textile printing and dyeing, mechanical, electronic manufacturing, automobile manufacturing, plastic machinery, electric power, water conservancy, water treatment/environmental protection, boiler heating, energy, power transmission and distribution and so on.
J3 – FEEDBACK CONNECTOR J3 is a 6-pin pluggable IEEE 1394 style connector for the feedback device. Although this connector mechanically accepts standard IEEE 1394 cables, it is electrically not a 1394 interface. The base drive accepts either SFD (Smart Feedback Device) or Hall inputs. 1 2 3 4 5 6 (J3 Connector view from front of drive) Pin Description J3-1 SFD +5 V (200 mA) J3-2 SFD +5 RTN J3-3 SFD COMJ3-4 SFD COM+/CU J3-5 NC/CV J3-6 NC/CW Shell Shield Connection Mating Connector Information IEEE1394, Firewire type, 2.0 mm plug set 22 AWG Max., Molex 55100-0600 Refer to for assembly instructions. J3 –1 SFD +5 V This terminal provides a 5 VDC output to power the feedback device. For example, motors equipped with SFD, Halls or a commutation encoder. The load current should not exceed 200 mA. J3-2 SFD +5 RTN This terminal is the return connection for the 5 VDC supply. An inner feedback cable shield can be connected to this point. Outer shields should connect to the shell which is PE. J3-3 SFD COMSFD serial communications port when using the SFD feedback device. No connection when using Hall feedback. J3-4 SFD COM+ / CU SFD serial communications port when using the SFD feedback device. CU (Commutation Phase U) input when using open collector Hall feedback. This input has a 2.21 kW pull-up resistor to 3.3 V. J3-5 NC / CV No connection when using the SFD feedback device. CV (Commutation Phase V) input when using open collector Hall feedback. This input has a 2.21 kW pull-up resistor to 3.3 V. J3-6 NC / CW No connection when using the SFD feedback device. CW (Commutation Phase W) input when using open collector Hall feedback. This input has a 2.21 kW pull-up resistor to 3.3 V. Shell Outer shield connection (wired to PE in the drive).Mating Connector Information 26-Pin Male High Density D-Sub with Back shell Kit 24 AWG Max., NorComp 180-026-102-001 – D-Sub Connector NorComp 978-015-010-03-1 – Back shell Kit Refer to 6.7.1 General Purpose Inputs General Purpose
Inputs DINP1-3 J4-2, 3, 4 MSINP1 J4-5 Common Input Terminal J4-1 The general purpose inputs are a bank of four inputs that share a common terminal (DINP COM) on J4-1. The inputs operate over a wide input voltage range of ± 4.0 to ± 30 V. General purpose inputs are compatible with either sourcing or sinking currents to provide maximum flexibility for interfacing to field wiring
>>
