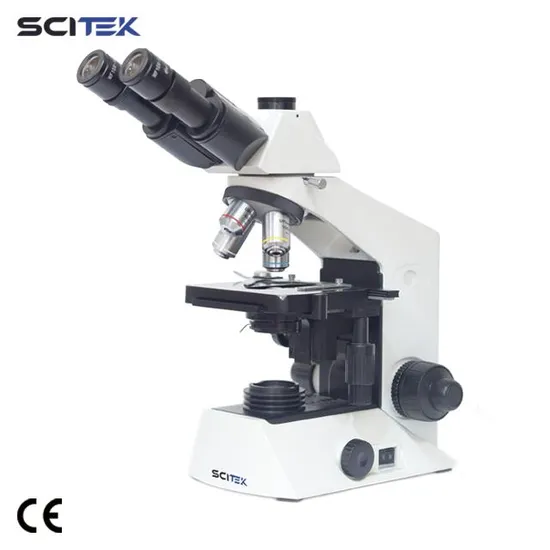

SCITEK Biological Microscope Infinity Optical System 3 Years Warranty Microscope for Lab

US$390.00-460.00 1 unit (MOQ)

Basic Info.

Model NO.
MSC-B201T
Magnification
40X-1000X
Type
Biological
Number of Cylinder
≥Three
Mobility
Desktop
Stereoscopic Effect
Without Stereoscopic Effect
Kind of Light Source
Ordinary Light
Shape
Ball, Hemisphere
Usage
Teaching, Research
Principle
Optics
Principle of Optics
Biological Microscope
Nosepeice
Quadruple Nosepiece/Xquintuple Nosepiece
Stage
Double Layers Mechanical Stage 140X135mm/75X50mm
Condenser
Abbe Na1.25 with Iris Diaphragm & Filter
Power Supply
AC220/110V 10%, 50/60Hz
Filter
White Filter
Transport Package
Wooden or Carton Package
Specification
360x260x470
Trademark
SCITEK
Origin
China
Production Capacity
100 Units/Months

Packaging & Delivery

Package Size
36.00cm * 26.00cm * 47.00cm
Package Gross Weight
8.000kg

Product Description


Product DescriptionFunction:
Viewing Head : Seidentopf Binocular Head, Inclined at 30°, Interpupillary 55-75mmEyepiece : Wide Field Eyepiece WF10x18mm, xWF16×; xWF20×xWF10x22mmObjective : Infinite plan Achromatic Objective 4x, 10x, x20x, 40x, 100× / xInfinite Plan Phase Objective Ph10x, 20x, 40x, 100x
Product Parameters
ModelMSC-B201T
Optical SystemInfinity Optical System
Viewing HeadSiedentopf Trinocular Head,Inclined at 30°,Interpupillary 55-75mm
EyepieceWide Field Eyepiece WF10X18mm ,xWF16×;xWF20×xWF10X22mm
ObjectiveInfinite plan Achromatic Objective:4×,10×,x20×,40×,100×
xInfinite Plan Phase Objective:Ph10x,20x,40x,100x
NosepeiceQuadruple Nosepiece/xQuintuple Nosepiece
StageDouble Layers Mechanical Stage 140×135mm/75×50mm
CondenserAbbe NA1.25 with Iris Diaphragm & Filter
Focusing SystemCoaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke
37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 28mm
Illumination3W LED Lamp, Brightness Adjustable
6V 20W Halogen Lamp, Brightness Adjustable
PackageStyrofoam
Carton
Wooden Case
FilterWhite Filter
OptionalTurret Phase Contrast Kit; Dark Field Attachment Microscope Camera
/ Win 10 Pad / Digital display
Shipping Size
(W×D×H)(mm)
360x260x470
G.W. (kg)8
