Basic Info.
Actuator
Pneumatic/Solenoid
Pressure
Ordinary Pressure
Motion Pattern
Inner Guide Type
Working Pressure
0.15~0.8MPa
Effective Section Area(mm)
16mm2(CV=0.89)/14mm2(CV=0.78)
Ambient Temp.(Celsius)
5~50
Power Consumption
AC:4.5va DC:3W
Wiring Form
Lead Wire or Connector Type
Transport Package
Plastic Bag + Inner Box + Carton Box
Specification
CE/ ISO/ROHS
Production Capacity
10000sets/Month
Product Description

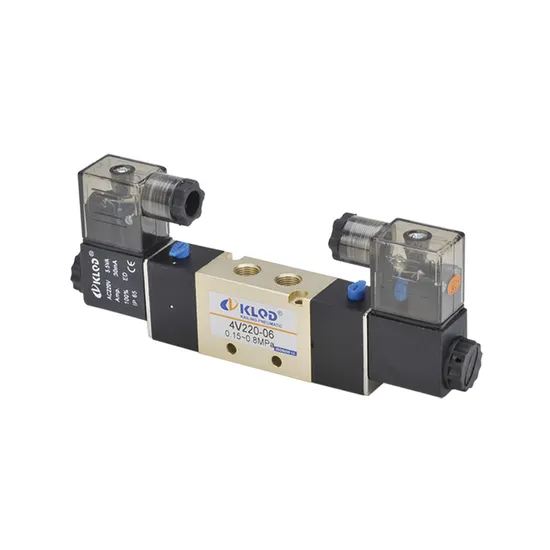

High Quality 5/2 Way 4V220-08/06 24V Solenoid Valve
| 4V | 2 | 10 | 08 | B | W | AC220V |
Specification Code 4V:5/2(3) Way Solenoid Valve 4A:5/2(3) Way Pneumatic Control Valve 3V:3/2 Way Solenoid Valve 3A:3/2 Way Pneumatic Control Valve | Series Code 200 Series | 10:Single-head Double position 20:Double-head Double-position 30C:Double-head Three-position Close Type 30E:Double-head Three-position Exhaust Type 30P:Double-head Three-position Pressure Type | Port Size 06:1/8'' 08:1/4'' | Joint Pipe Form and Initial State Blank:Pipe Connection Type B:5/2 Way Plate Connection Type 5/3 Way Plate Connection Type NC:3/2 Way Normal Close Type NO:3/2 Way Normal Open Type | Wiring Form Blank: Standard Connector LD:Brown with Lighting Connector LD1:White with Lighting Connector W:Lead Wire Type | Standard Voltage DC12V DC24V AC24V 50Hz/60Hz AC110V 50Hz/60Hz AC220V 50Hz/60Hz AC380V 50Hz/60Hz |
1.Working medium:40 Micron Filtered Air
2.Working pressure:0.15~0.8MPa
3.Ambient Temperature:5~50ÂșC
4.Insulation&Protection Class:F Class. IP65
5.Highest Action Frequency:5 Cycle /Sac
6.Internal hole adopts special processing technology which has little attrition friction,low star pressure and long service life.
7.Several standard voltage grades are optional.
Working Voltage:DC12V DC24V AC110V AC220V
Packing & Delivery
Payment
Application
Our Company
NingBo Kailing Pneumatic Co ,LTD. is a professional company engaged in the production of Solenoid Valves and pneumatic parts.Our company has strong techologies and high capability in research and development of new products.The company has fine workmanship amd perfect inspection techniques. The products include Solenoid Valve , Air source treatment unit , control element and executive element etc which are widely used in industries such as machinery , metallurgy, food , textile and environmental protection .
FAQ
Q1. Is sample order acceptable?
A: Yes.It's ok.
Q2. How to place the order?
A: You can send us email or inquiry at directly.
Q3. How many days for delivery?
A: We have stock for standard products.
Q4. How to make the payment?
A: We accept BankT/T,Western Union,Paypal,or L/C.
Q5. How Will You Make the Shipment?
A.Sea Shipment by Pallet Packing.
B.Air.
C.Express Service.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
>>
