Single or Dual Speed Lifting Equipment of Electric Wire Rope Hoists Construction Machineary Electric Hoist Crane

Product Description

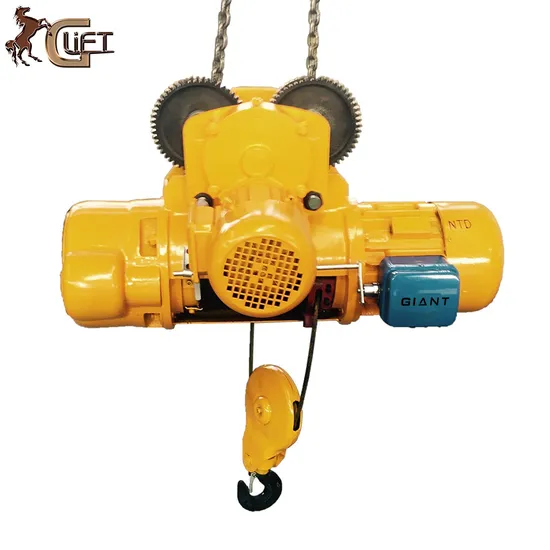

CD1/MD1 Series: 0.5-20T Electric Wire Rope Hoist With Trolley(CD1/MD1)
Model CD1 Single Speed Hoist with Trolley
Model MD1 Double Speed Hoist with Trolley Product Description
Compact, lightweight, small size and easy to use, and other characteristics, it can be installed on a separate overhead I-beam, can also be installed in matching electric single-girder, double beam, cantilever, such as gantry cranes for use. Fine occasions in the operation, choose between CD or MD based on different working condition, MD with double Speed hoist can switch between fast or slow speed. Wire Rope: High performance steady wire rope Compact: Compact structure, excellent performance. Electromagnetic brake: Adopt electromagnetic brake which is safe and reliable. M3 Rated: Working Class Low noise: Low noise starting, steadily working, sensitively operation.
Product Parameters

Model			CD1,MD1
Lifting Capacity(t)			0.5				1						2						3						5						8						10						12.5					16					20
Lifting Height(m)			6	9	12	18	6	9	12	18	24	30	6	9	12	18	24	30	6	9	12	18	24	30	6	9	12	18	24	30	6	9	12	18	24	30	6	9	12	18	24	30	6	9	12	18	24	6	9	12	18	24	6	9	12	18	24
Lifting Speed(m/min)			8,0.8/8				8,0.8/8						8,0.8/8						8,0.8/8						8,0.8/8						5,0.5/5						7,0.7/7						5,0.5/5					3,0.35/3.5					3.5,0.35/3.5
Running Speed(m/min)			20				20						20						20						20						20						20						20					20					20
Wire rope	Nominal dia.		5.1				7.4						11						13						14						13						14						16					18					18
	Structure		6*19+NF				6*37+NF						6*37+NF						6*37+NF						6*37+NF						6*37+NF						6*37+NF						6*37+NF					6*29+NF					6*29+NF
	Intension rate(mpa)		1770				1670						1670						1670						1770						1670						1770						1770					1870					1870
Rail-beam			16-28b				16-28b						20a-45c						20a-63c						20a-63c						28a-63c						28a-63c						36a-63c					36a-63c					36a-63c
Min.radius of ring rail(m)			1.5				1.5		2		3	4	2		2.5		3	4	2		2.5		3	4	2.5		3		4	5	2.5	3	4	5.5	7	8.5	2.5	3.5	4	6	7.5	9						3.5	4	6	7.5	9	3.5	4	6	7.5	9
Lifting motor	Type		ZD,21-4				ZD,22-4						ZD,31-4						ZD,14-4						ZD,41-4						ZD,41-4						ZD,51-6						ZD,51-6					ZD,51-6F					ZD,51-6
			ZDS,0.2/0.8				ZDS,0.2/1.5						ZDS,0.4/3.0						ZDS,0.5/4.5F						ZDS,0.8/7.5						ZDS,0.8/7.5						ZDS,1.5/13						ZDS,1.5/13					ZDS,1.2/11					ZDS,1.5/13
	Capacity(kw)		0.8,0.2/0.8				1.5,0.2/1.5						3.0,0.4/3.0						4.5,0.5/4.5						7.5,0.8/7.5						7.5,0.8/7.5						13,1.5/13						13,1.5/13					11,1.2/11					13,1.5/13
	Speed(r/min)		1380				1380						1380						1380						1380						1380						930						930					930					930
	Phase number		3				3						3						3						3						3						3						3					3					3
	Voltage(V)		380				380						380						380						380						380						380						380					380					380
	Curren(A)		2.4,0.72/2.4				4.3,0.72/4.3						7.6,1.25/7.6						11,1.4/11						18,2.4/18						18,2.4/18						33,5.2/33						33,5.2/33					28,4.5/28					33,5.2/33
	Frequency(Hz)		50				50						50						50						50						50						50						50					50					50
Running motor	Type		ZDY,11-4				ZDY,11-4						ZDY,11-4						ZDY,11-4						ZDM,2-4F						ZDM,12-4F						ZDM,12-4F						ZDY,21-4					ZDY,21-4F					ZDY,21-4
	Capacity(kw)		0.2				0.2						0.2						0.2						0.5						0.5*2						0.5*2						0.8*2					0.8*2					0.8*2
	Speed(r/min)		1380				1380						1380						1380						1380						1380						1380						1380					1380					1380
	Phase number		3				3						3						3						3						3						3						3					3					3
	Voltage(V)		380				380						380						380						380						380						380						380					380					380
	Curren(A)		0.72				0.72						1.4						0.72						1.4						1.4*2						1.4*2						2.4*2					2.4*2					2.4*2
	Frequency(Hz)		50				50						50						50						50						50						50						50					50					50
Number of switching(nhr)			120				120						120						120						120						120						120						120					120					120
Classification grade			M3				M3						M3						M3						M3						M3						M3						M3					M3					M3
Basic dia. ±2%	H	(MM)	~865		~955		~880			~970			~1035			~1140			~1165			~1270			~1305			~1465			~1350						~1450						~1590					~1990					~2000
	I		628	714	772	916	772	867	965	1161	1357	1553	818	918	1018	1218	1418	1618	963	1066	1164	1375	1581	1781	1082	1209	1298	1489	1699	1909	1342	1520	1700	2060	2418	2777	1513	1694	1875	2237	2594	2956	1658	1854	2050	2442	2834	1814	1995	2357	2719	3081	1814	1995	2357	2719	3081
			625	711	769	913	769	864	962	1158	1354	1550							965	1068	1166	1377	1583	1798	1079	1206	1295	1486	1696	1906	1392	1517	1697	2057	2415	1774	1904	2085	2666	2628	2985	3347	2049	2245	2441	2833	2147	2147	2328	2690	3052	3411	2147	2328	2690	3052	3411
	M		318	390	462	601	404	499	597	793	989	1185	412	512	612	812	1012	1212	457	561	658	869	1075	1281	488	615	704	895	1105	1315	748	926	106	1466	1824	2183	847	1028	1209	1571	1928	2290	992	1188	1384	1776	1148	1148	1329	1691	2053	2415	1148	1329	1691	2053	2415
	N		190				196						240						264						320						320						376						376					376					376
	Φ		14.5				19						23						25						31						31						38						37					38					38
	E		~795				~805						~960						~1080						~1210						~1093						~1200						~1293					~1635					~1690

Detailed Photos
Similar Products
QUALITY CONTROL PROCESS
FAQ

Q1: Are you a factory or a trading company?
A1:We are a combination of both, we focused on manufacturing material handling product such as lift tables, manual & electric pallet trucks and lifting platforms over 35 years, we also exporting manual & electric chain hoist, lever hoisting, lifting clamp and steel jack. We are your ideal choice for one stop purchase with our compete line of industrial lifting/moving equipment
Q2: Can Giant lift provide customized products? OEM products or ODM products?
A2: Yes, Giant lift can provide customized products according to your requirement. Both OEM and ODM are acceptable.
Q3: Can we print the LOGO on products?
A3: Yes, the OEM is available with the permission of our customers.
Q4: How do you control your quality?
A4: 1. We only select high-quality steel material from famous steel group
2. Standardized production process with traceable ID Card, every part can be tracked to the original records.
3. 100% finished product testing before shipping.
4. We accept third party product inspections.
5. ISO9001 Quality management system certificated factory
6. Supervised container loading process, ensures the last step security
Q5: How long is the warranty on your products?
A5: We provide 12 months warranty for all of our product, excluding wear parts such as wheels, tire or hydraulic oil
Q6: What's the lead time for production?
A6: Usually around 10-15 days after payment received, around 30 days during new year's or national holidays.
Q7: What Payment terms do you accept?
A7: T/T or L/C, if you want any other method please contact sales
Q8: What are your advantages compared to the others?
A8: Unique products, with customized service. Timely production and delivery, time is money. Market protection service, long term business strategy.

---
