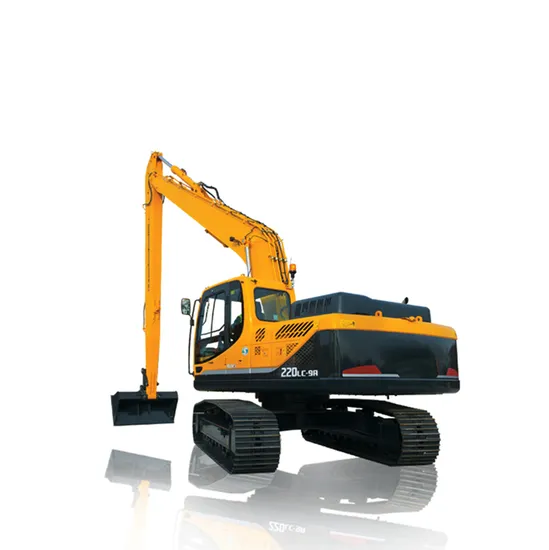

Hyundai 22 Ton Crawler Excavator Hx220 Hx235 Large Digger Remote Control Excavator with Accessories Attachment Digger Hammer Breaker

Product Description

Product Description
HX220HDSUPERIOR PERFORMANCE* Heavy Duty Boom & Arm ·New Variable Power Control* Hyundai 6BTAA-5.9 (HM5.9) ·Reinforced Bucket and Bucket Linkage* Powerful and Preciser Swing Control* Strong and Stable Lower Frame* Single Layer Cooling System* Minimization of Shock and Vibration through Cab Mounting SystemCOMFORTABLE OPERATION* New Front Side Air-conditioning System* Smooth Travel Pedal and Foot Rests* Improved Intelligent Display·Easy-to-Reach Control Panels* Wide Cab with Excellent Visibility* Highly Sensitive Joystick and Easy Entrance* Wide, Comfortable Operating SpaceSERVICEABILITY AND EASY MAINTENANCE* Easy to Maintain Engine Components* Centralized Electric Control Box and Easy Change Air Cleaner Assembly* Side Cover with Left & Right Swing Open Type* Large tool box for extra storage* Highly efficient Hydraulic Pump·Hi-MATE (Remote Management System)
Detailed Photos
Product Parameters

Bucket Capacity	0.87 ~ 1.20 m³
Size	Medium
Engine model	6BTAA-5.9
Rated Power	148hp/2,000rpm
Max. Torque	64kgf·m/1,300rpm
Main pumps rated flow	2 X 234 ?/min
Implement circuit	350 kgf/cm2
Swing speed	12.2 rpm
Travel speed	5.7 km/h
Max. Traction force	21,100 kgf
Max. gradeability	35 deg
Bucket Digging Force (ISO)	15,500 kgf
Arm Digging Force (ISO)	10,900 kgf
Overall length	9,530 mm
Overall height	3,030 mm
Overall width	3,000 mm
Tail swing radius	2,845 mm
Tumbler distance	3,360 mm
Ground clearance	470 mm
Boom length	5,680 mm
Arm length	2,920 mm
Max. Digging reach	9,980 mm
Max.Digging depth	6,730 mm
Max. Digging Height	9,600 mm
Max. Dumping Height	6,780 mm
Min. Swing radius	3,670 mm
