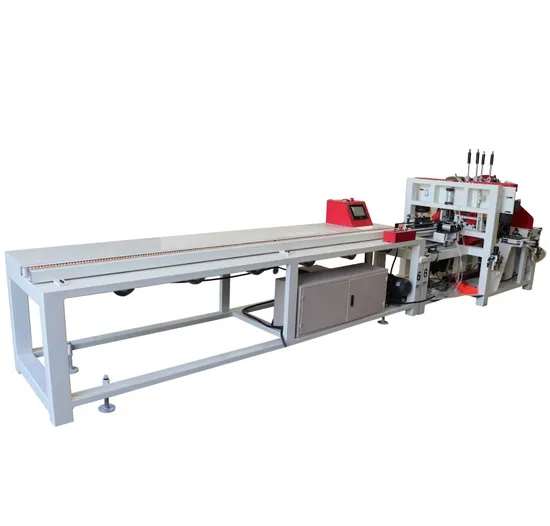

Plywood Pallet Block Cutting and Nailing Machine Wooden Pallet Making Machine

Product Description

Product Description
Plywood Pallet Block Cutting & Nailing Machine cut wasted film faced plywood, plywood and nail the cut-off blocks for pallet feet

Model	PB200
Working mode	Automatic feeding ,automatic nailing and cutting
Operating mode	Touch screen control
Operational mode	Pneumatic operation
Motor power	7.5KW,2.2KW*2,1KW
Raw material length	1000-3000mm
Block Length	40-200mm
Cutting height	40-120mm
Cutting width	40-100mm
Cutting blade	350-400mm
Nail quantity	1-3 pcs (adjustable)
Working Efficiency	5-6m3/day
Weight	1200Kg
Dimension	5400*1400*1600mm

Detailed Photos
Related Machines
Automatic Pallet Block Cutting Machine

Wood block multi-blade saw
Model	BM-1250
Cutting Length	1250mm
Cutting Thickness	100mm
Cutting Width	200mm
Saw Diameter	355mm
Motor	30kw
Weight	1600kgs

Automatic Wood Cut Off Saw
Automatic Euro Pallet Block Nailing Machine
Automatic Euro Pallet Nailing Machine Production Line
Company Profile
SHANDONG SHUANGHUAN MACHINERY LTD is one of the world's leading manufactures of high quality sawmills.Established in 1988,the company has always been committed to the production and R&D of sawmills and sincerely serves 32,000 enterprises.Our products has been exported to more than 70 countries in the world .
The company's registered brand "SAWMILL-WORLD" currently coverts a large number of product lines incliding log sawing e quipment,solid wood furniture equipment ,and wod shredding equipment .With the standardization of quality management and service,it has won the favor of many customers .
As the world's best supplier of sawmills ,the company is aiming to continuously strengthen its own technological innovation ,accelerate the R&D of sawmill machinery ,and strive to provide each partner with the best conbination of sawmill production lines .Based on the service philosophy of "Quality for lift " and "Customer-centered",Shuanghuan Machinery insists on stading at the forefront of market science and technilogy so that each product can take up the company's brand value,allowing each service details to penetrate into the customer's mind,shouldering responsibility .And the mission ,here ,is willing to work with the vast majority of partners to join hands in creating brilliant .

---
