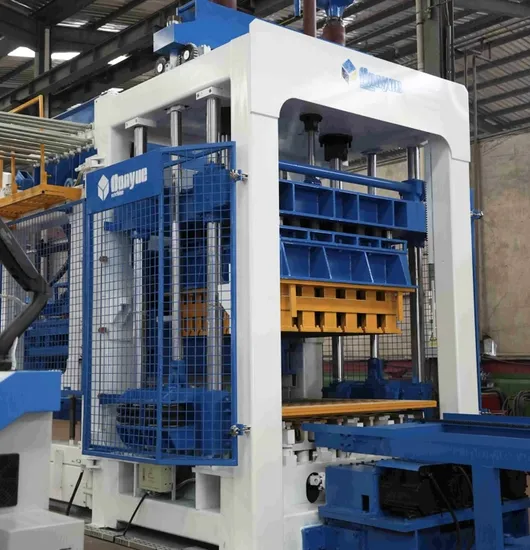

Qt18-15 Industrial Concrete Hollow Block Porous Brick Making Machine (Automatic Hydraulic)

Product Description

Product Description
Name: QT18-15 Fully Automatic Block Production Line With Curing System
1. Function
QT18-15 Fly ash hollow building block making machine can produce different hollow blocks, solid blocks,paving blocks and curbstone by change moulds.
2. Advanced technology
The machine adopts hydraulic system and Hydraulic molding ,the working procedure is very even and dependable.
It is a practical machine that simple in structure, artistic in figure.
Especially suitable to the production of the standard bricks
The reasonable material proportion have the capacity of making high density standard bricks produced in this way are durable and wear resistant.
3. High quality brick mold
The company adopts the most advanced cutting technology and heat treatment technology to ensure product quality and ensure customers' ease.

host machine size	14000*2350*3800mm
block making period	15S
vibrating force	200-220KN
host machine power	116KW
host machine weight	33T
Pallet size	1400*1350*40mm
Brick types can make	all kinds of types, only need to change the molds.

Detailed Photos
Examples of theoretical production capacity
Material for making blocks
According to local market condition, we can design a proper proportion of raw material.Common raw material: Fly ash, cement, sand, crash stone, additive, construction garbage etc.
This is the most popular proportion in making block making machine:1. Standard concrete block: Cement 9-12%, sand 40%, stone 45%, water 3% 2. Light concrete block: Cement 9-12%, slag 80-90%, water 3%3. Cement 9-12%, sand 10-20%, stone 30-40%, slag 25-50%, water 3%4. Cement 8%-10%, sand 30%-40%, stone 50%-60%5. Cement 8%, sand 60%, Fly ash 30%, gypsum 2%.
Doable brick type

Related products
Packaging & Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
