5000kg Red Polyester Eye-Eye Flat Webbing Sling Lifting Strap Wll5000kg 8m (EN1492-1)

Product Description

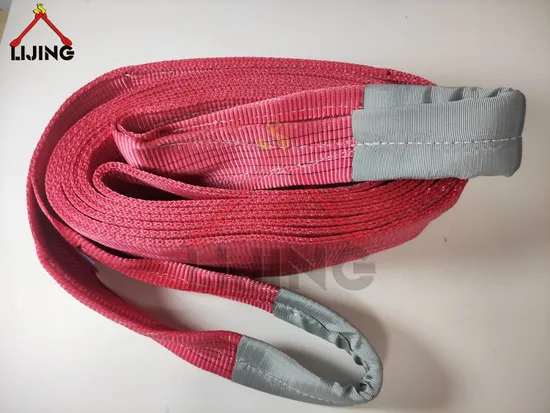

Polyester Eye-Eye Flat Webbing Sling

Material: 100% Polyester WLL 5000kg Length: 8m Standard: EN1492-1 Safety Factor 7:1
The Flat eye and eye webbing slings are made from flat polyester webbing sewing with two reinforced eye loops at each end. According it's layer, we have simplex webbing slings, duplex webbing slings, triplex and quadruplex webbing slings. Our lifting belt is made according to international color code for easy load bearing capacity identification. Products are manufactured with BS EN1492-1: 2000, safety factor 7:1, with certificate of conformity, TUV, GS, CE approved.
Polyester lifting webbing slings are light and easy to use, high capacity, be with high abrasion resistance, corrosion resistance, mould resistance. With these advantages, they're widely used in engineering, marine, port, dock, steel, installment and other industrial fields.
We offer the flexibility to customize lifting slings based on its lifting capacities, lengths, and configurations, in accordance with your lifting applications and requirements. Protective sleeves are also available to further provide additional protection to the lifting slings.
Different width for different safety factor for duplex eye to eye flat webbing sling(DEE)

Artical No.	Color	WLL(kg)	Width(mm)
			5:1	6:1	7:1
WS-DEE010	Violet	1000	25	25	30 or 50
WS-DEE020	Green	2000	50	50	60
WS-DEE030	Yellow	3000	75	75	90
WS-DEE040	Grey	4000	100	100	120
WS-DEE050	Red	5000	125	125	150
WS-DEE060	Brown	6000	150	150	180
WS-DEE080	Blue	8000	200	200	240
WS-DEE100	Orange	10000	250	250	300

With different application, eye to eye webbing slings carry their loads in three hitches: vertical, choker and basket. Conform to BS EN1492-1:2000 and 'Machinery Directive 2006/42/EC'.
