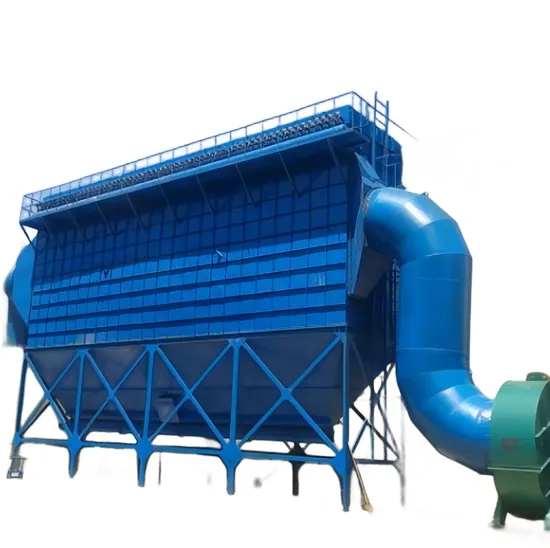

Hmc-96 Pulse Jet Bag Filter/ Pulse Bag Type Dust Collector

US$3,500.00-40,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
HMC-96
Operation
Type
Automatic
Medium Material
Chemical Synthetic Fiber
Dust Collecting Method
Dry
Type
Filter Cartridge Dust Collector
Filtered Air Volume(M³/H)
6500-13000
Filtering Area(M³)
96
Efficiency of Dust Collection(%)
99.5
Overall Size mm (L*W*H)
2400X2600X4940
Transport Package
Customized
Specification
Casting steel
Trademark
HENGSHENG
Origin
China
HS Code
8421392290
Production Capacity
5000sets/Year

Packaging & Delivery

Package Size
220.00cm * 160.00cm * 400.00cm
Package Gross Weight
1000.000kg

Product Description

Product DescriptionThis product adopt needle filtermaterial and pulse pulverized dust cleaning technology, hascharacteristics of high efficiency, low resistance, small volume, long life filter bag and wideapplication. it can be used in shaft kiln in cement factory, dryer, mill machine, packing machine.crusher and all kinds of dust cleaning in material warehouse.
The series of large pulse length bag filter is our technical personnel from domestic and foreign advanced technologies based on thermal power plant ,cement plant , metallurgy industry, chemical industry, the characteristics of smoke, for the successful development of power plant boiler, cement rotary kiln, steel mills, coke oven blast furnace, and other special high long bag filter.It combines the sub-room cleaning and the characteristics of pulse cleaning, to overcome the general sub-room cleaning and the general lack of intensity pulse cleaning dust and then attached to the shortcomings of the bag and longer air force into full play the role of cleaning. It is s a high collection efficiency, stable, reliable performance, easy maintenance of large bag filter dust removal equipment.
Part NameComponentsSpecColor
Main body Bag Plate312, Thickness 4mm,Blue or Customized
Head PlateThickness 5mm,
Bag160*3600mm Yellow medium temperature anti-static
Blow sheet
Pulse Vavle2" anti-explosion
Electric PartsScrew conveyor Carbon steel, Shell thickness 3mm, Blade thickness 6mm
Dust explosion proof Motor
Geared motor
CindervalveDN300, cast iron
Note:All the parts can be customized Product Parameters
ModelFiltered air volume(m³/h)Filtering area(m³)Efficiency of dust collection(%)Overall Size mm
(L*W*H)
HMC-644500-60006499.51680 x2450 x4940
HMC-966500-130009699.52400x2600x4940
HMC-1288300-1728012899.53120x2700x4940
HMC-16011000-2300016099.53900x2720x4940
HMC-18012400-2430018099.53840x3000x5135
HMC-25620000-4050025699.55760x3300x5135
HMC-32022000-4520032099.55760x4120x5698
