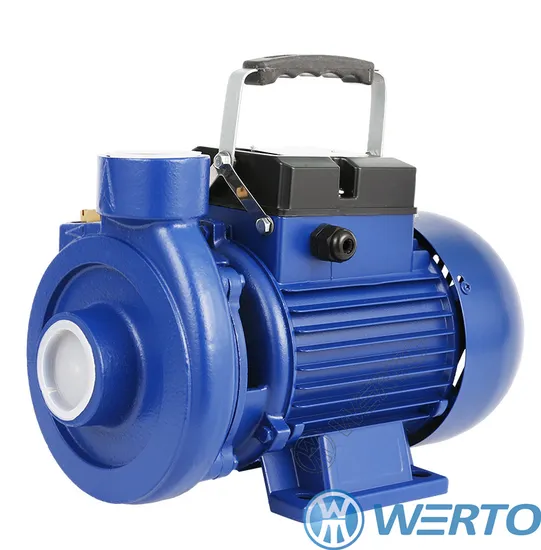

Werto 0.37kw 0.5HP 1dk-14 Good Quality Industrial Centrifugal Pump

Product Description

INSTALLATION AND USE
Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
They are reliable and easy to use, so they are widely used in domestic and civil applications such as the distribution of water in combination with small and medium sized pressure tanks, for transferring liquids and for the irrigation of gardens and orchards.
The pump should be installed in an enclosed environment or sheltered from inclement weather.
MOTOR FEATURE
Insulation: Class B
Protection: IP44
Thermal Protector
Continuous Service: S1
Two-pole Induction Motor
Single-Phase 220V/50 Hz, 60 Hz on demand
Three-Phase 380V/50 Hz, 60 Hz on demand
OPERATING CONDITION
Suction lift up to 8m
Liquid temperature up to 60ºC
Ambient temperature up to 40ºC
COMPONENT CONSTRUCTION CHARACTERISTICS
PUMP BODY: Cast iron
PUMP SUPPORT: Cast iron
MOTOR HOUSING: Aluminum
IMPELLER: Brass, PPO on demand
MOTOR SHAFT: Carbon steel, AISI304 SS on demand
MECHNICAL SEAL: Ceramic/Graphite
BEARINGS: 6201 RZ/6201 RZ(0.5HP),6203 RZ/6203 RZ(1HP), 6204 RZ/6204 RZ(1.5HP&2HP)
CERTIFICATIONS
TECHNICAL DATA

MODEL	INLET/OUTLET	POWER		Q m³/h	0.6	1.2	2.4	4.2	5.4	10.8	14.4	18	21.6	23.4
SINGLE PHASE	INCH	KW	HP	l/min	10	20	40	70	90	180	240	300	360	390
1DK-14	1''*1''	0.37	0.5	H m	14	12	10	6
1.5DK-20	1.5''*1.5''	0.75	1		20	19	18	16	15	7
2DK-16	2''*2''	1.1	1.5		16	15	14	12	10	7	6	5	3
2DK-20	2''*2''	1.5	2		20	19	16	14	12	10	8.5	6	5	4

H=TOTAL HEAD IN METERS. Q=FLOW RATE

MODEL	G.W/PC	L×W×H	Q.TY/CTN	PACKING MATERIALS
	kgs	cm
1DK-14	7	28×15×18	4	CARTON
1.5DK-20	13	33×21×22	2
2DK-16	17	39×22×24	2	WOODEN CASE
2DK-20	18.5	39×22×24	1

ABOUT US
Taizhou Werto Mechanical & Electrical Co.,Ltd. is a company which specialized in water pumps and electric motors for the R&D,Manufacture and Sales.Our company was founded in 2004 and located in China 's pump town,Wenling,Zhejiang,China.
WHY CHOOSE US
(1) Customization: We have a strong R&D team, which can develop and produce products according to drawings or samples provided by customers.
(2) Cost: We have our own pump and motor production line, raw materials processing, factory direct sales, inexpensive.
(3) Quality: We have our own laboratory and the most advanced testing equipment in the industry to ensure product quality.
(4) Multiformity: We have up to 100 kinds of pump motor products with different appearance, power and performance for customers to choose.
(5) Capacity: Our annual output exceeds 300000sets, which can meet the needs of customers with different purchasing quantities.
(6) Service: Based on high grade and high-end market, our products meet international standards, mainly exported to Europe and America, Southeast Asia, South America, the Middle East and other countries.
(7) Shipment: We are only 200 kilometers away from Ningbo port, which is very convenient for export.
YOU MAY CONCERNED
Q1:Are you a manufactory or trading company?
A1: We are a manufacturer with 15 years experience in pump field.
Q2:What's your MOQ?
A2:The sample can be made in one piece. For mass production, the MOQ is 50 or 100 pieces(depends on the models).
Q3:What's your payment terms?
A3:T/T, L/C, ...
Q4:What certificates do you have?
A4:ISO9001,CE,CB, IECEE, ...
Q5:How long is the warranty?
A5:One year under normal service conditions.
Q6:What is the delivery time?
A6:25-30 days after receiving deposit.
Q7:Can you help we do OEM brand?
A7:Yes,welcome.

---
