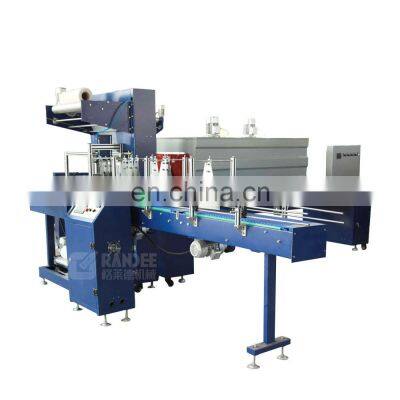

Automatic Heat Shrink Wrap Cutting Sealing Machine

Product Description

Product Description
Automatic Heat Shrink Wrap Cutting Sealing Machine
Product Description
Machine description:
Shrink packaging machine is a new type of packaging machinery capable of high-efficiency and continuous operation and designed on the basis of thermal shrinkage property of packaging film. It can automatic arrange, group, wrap with shrink film single PET beverage bottle or other similar substances, and turn into assembly package by heat shrinkage and cold setting. Products packaged in this way will be tied up firmly presenting orderly and good appearance, and will be easy to open.
Features:
1) The temperature can be controlled automatically and changed as required.
2) Isothermal sealing cutter
3) Original guide bar cylinder with steady operation
4) Programmable logic controller (PLC) control
5) Non bottom support packaging, suitable for package with different bottle diameters and different combinations
6) Simple operation and easy repair.
Packing Flow: Feeding→ pushing bottles→ film covering and sealing→ shrinking→ cooling
1.Feeding: The bottles enter into conveyor trough of sealing machine, on the conveyor trough there are adjustable guardrail. The feeding will stop when the bottle arrived to the set position.
2.Pushing bottles: After the bottles arrived to the pushing platform, the pushing cylinder will work at the same time to push the bottles over the sealing-cutting line.
3.Cover film and sealing: After bottles pushed over the sealing-cutting line, the upper pressing device will press the bottles, this process will protect the bottles falling. After pushing cylinder return, the film sealing cylinder and film cutting cylinder will work together to finish the film covering and sealing process.
4.Shrink: After finishing the film covering the bottles will enter to the shrinking stove.
5.Cooling: After shrinking, the bottles will enter into the cooling device which installed on the end part, then enter into the stock shelf and waiting for stacking.
Main machine:
Feeding bottle conveyor belt
Cutting part
Photoelectric detecting bottles
Shrink tunnel
Electrical control cabinet
Packaged bottles
Main technical parameter:

Model	GD-150A
Maximum size of a package	420300350mm
Max. Sealing size	650mm
Level of the conveyor	950 ± 30mm
Material of shrink film	PE
Maximum shrinkage temperature	160-260℃
Maximum production speed	8-12 packs / min
Working pressure:	0.6MPa~0.8Mpa
Power (rated/real)	26kw / 16kw
Weight	1200KG
Dimension of the equipment	585035001600mm

FAQ
Q1: How to find suitable machine or complete beverage production line?
A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements
• Discussion: Specify the items and what are you exactly looking for.
Q2: Are you a trading company or a manufactory?
A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .
Q3: Do you have technical support after we purchased your machines?
A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
Q4: If you buy our machines, can you offer us wear-out spare pats?
A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
