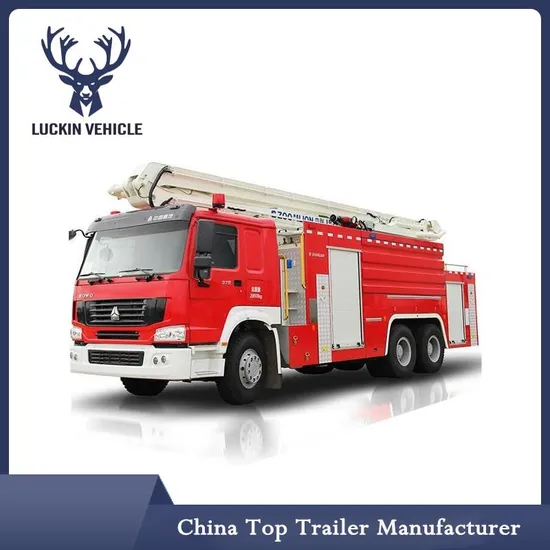

Low Price Sinotruk HOWO 8X4 Foam Tender Fire Pump Fire Fighting Truck

Product Description

low price Sinotruk HOWO 8x4 Foam Tender Fire pump fire Fighting Truck
Our Advantage 1.Competitive Factory Price and Excellent Quality
2.More than 20 years' experience as a manufacturer
3.Products Quality Certification SGS CCC ISO
4.Perfect after-sale service
5.Customized products available with us
6.Export to more than 50 countries and regions
fire truck manufacturers HOWO water foam tanker rc Fire truck fire fighting truck water pump, brand new 6x4 Military Airport Fire Fighter Ladder Truck
Fire truck is also called as the fire fighting truck and fire engine. It is used to fight fire or for other emergency rescuing specially.
In fact, fire truck is the common name for the truck that is equipped with various fire fighting devices and tools. It is the main equipment in fire fighting area and is the basic mobile fire fighting equipments.
Our company is professional on refitting and selling Dongfeng HOWO ISUZU FOTON FAW fire trucks.
Fire truck/fire-fighting truck/fire engine, refitted by second-type cargo truck chassis, special parts consist of tanker, pump chamber, equipment box, power take-off, drive system, piping system, electrical system etc. Widely used in urban public security fire brigades, petrochemical industry, mines enterprises, forest, port, wharf and other departments, quickly get close to fire ground and start fire fighting. Ideal fire-fighting equipment to put out all kinds of fire.Streamline design, novel appearance, flexible, economical and practical. Internal separation material of equipment rack is made of high-strength aluminum alloy, looks beautiful and elegant. All kinds of equipment placed reasonable, and fixed by specialized fixture.
Double row of monolithic structure, wide view, more passengers (6-8 people); trucks can put out fire during marching, far ranging and strong fire-fighting power. Optional atmospheric pressure fire pump, mesolow pressure fire pump or high-low pressure fire pump.

Vehicles Parameters
Dimensions
Length/mm		9870
Width/mm		2500
Height/mm		3690
Wheelbase/mm		4350+1300
Front/Rear Thread/mm		1835/1640
Approach/Departure Angle/°		20/13
Front/Rear Overhang/mm		1180/1715
Chassis
Brand		HOWO
Driven Mode		6x4, LHD
Front Axle Load/kg		9000
Rear Axle Load/kg		2*16000
Braking System		Air Break
Tyre		12R22.5, 10 pcs and one spare
Gear Box		10 forwards 2 backward
Max Speed/ km/h		105
Beam		140mm Cross Beam
Cab		3+3 passengers
Engine
Model		WeiChai
Horsepower/HP		266
Displacement/L		6.7
Max Torque		450N·m
Speed at Max Torque/rpm		1500
Fire Fighting System
---------Fire Pump
Model	CB10/40
Flow/ L/s	40
Pressure/MPa	1.0
Water Suction Time/s	Less than 35(when height is 7m)
Installation Mode	Rear-mounted
-----------------Fire Monitor
Model	PS40
Pressure/MPa	1.0
Flow/ L/s	40
Range/m	More than 60
Horizontal Rotating Angle/°	360
Pitching Rotating Angle/°	-30~80
Operation Mode	Manual
--------------Pipeline Systems
Internal Inflow Pipe	One pc φ125mm pipe with one pc φ125mm flygate
External Inflow Pipe	Installed behind the pump, φ125mm, with 4 pcs 2m water suction pipes
Water Outlet Pipe	-Installed behind the pump, 2 pcsφ80mm constant pressure ball valves and 2 pcs φ65mm medium pressure ball valves -One pc φ80mm gun pipe with φ80mm flexible joints, controlled by a φ80mm ball valve
Water Injection Pipe	-One pc φ50mm internal water injection pipe -One pc φ65mm external water injection pipe
Cooling Water Pipe	Equipped with stainless steel ball valve
Drain Pipe	In the lowest position of the pipe
-------Pipeline Systems
Loading Capacity/kg	10000
Material	Quality Carbon Steel Plate
Thickness	Baseboard and Endplate: 4mm Side plate and top plate: 3mm
Structure	Welded Type, Anti-swing Plate Inside -One Manhole, with fast lock & unlock device -One Overflow Device -One Level Indication Device -One Drain Hole, controlled by manual valve
Electrical System	-Above the driving room are lightbar & 12V/60W fire scene light -Above both sides of the vehicle are two flash lights -100W alarm light -Switches of all the lights, alarms and pumps on the control panel.
Foam Tank
Structure	Connected
Capacity/kg	2000
Material	Quality
Base: Side Plate: Anti-swing Plate	4:4:3
Other Detail	-One Manhole, with fast lock & unlock and pressure-release device -One Overflow Device: DN50mm -One Drain Hole with ball valve: DN40
Powder Cylinder
Power System	Including Pressed Nitrogen and Burned Gas
Capacity/kg	2000

More truck brand you can choose :
CNHTC , Beiben trucks , Shacman trucks , FAW trucks , I SUZU ,Hongyan trucks,FOTON trucks , Dongfeng trucks , JAC trucks

Q1: I don't want this configuration

A: The configuration can be changed according to your needs

Q2: Minimum order quantity?

A: MOQ is 1 unit.

Q3: Production period?

A: (Truck & trailer) Within 30 days since the moment we got your down payment (Parts) Within 7 days since the moment we got your down payment

Q4: Payment term?

A: (Truck & trailer) 30% T/T as deposit, the balance should be paid before delivery. or L/C (Parts) 100% T/T should be paid before delivery

Q5: Shipping?

A: (Truck & trailer) by container or RoRo/Bulk shipment. (South America, Middle East, Africa, Oceania etc.) by road or railway.(Russia, Mongolia, Kazakhstan, Uzbekistan , Vietnam, Laos etc.) (Parts) by international courier service, such as DHL, TNT, UPS, or Fedex. The goods above $1000 can be shipped by sea

Q6: Can you supply some quick-wear truck or semi trailer parts ?

A: Yes, we can supply truck and semi trailer parts as your request,such as oil filter, fuel filter, air filter, traction, traction pin, balance beam and semi-trailer plate spring, hanging accessories, turntable, all kinds of trailer brake pads, brake pan, bearings etc.

---
