Automatic Metal Universal Drilling and Milling Machine Zx7550cw for Sale

Product Description

Product Description

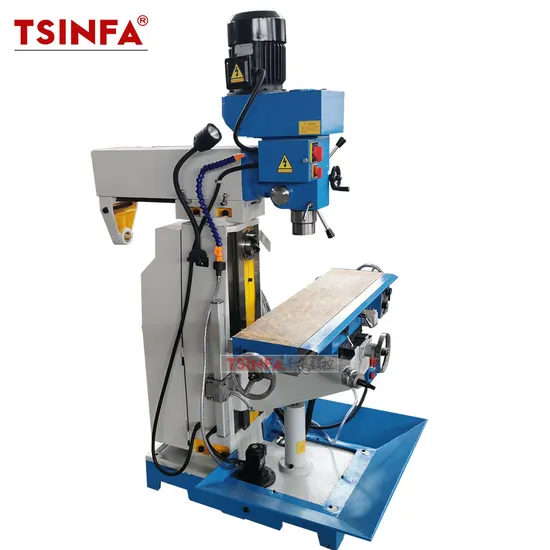

High Speed Universal Automatic ZX7550CW Milling and Drilling Machine for sale
Product Parameters

Specification	unit	ZX7550C	ZX7550CW	ZX50C
Max. drilling dia.	mm	50	50	50
Max. end milling width	mm	100	100	100
Max. vertical milling dia.	mm	25	25	25
Max. tappinig dia.	mm	M16	M16	M16
Distance from spindle to column surface	mm	200-500	200-500	320
Distance from vertical spindle to table surface	mm	70-400	70-400	38-550
Distance from level spindle to table surface	mm	/	0-380	/
Spindle speed range	r.p.m	115-1750	115-1750(V) 60-1325(H)	115-1750
Spindle travel	mm	120	120	120
Table size	mm	1000x240	1000x240	1000x240
Table travel	mm	500x230x350	500x230x350	500x230x520
Overall dimensions	mm	1290x1140x2100	1290x1140x2100	1100x970x1650
Main motor power	Kw	1.5/2.2 (V) 1.5 (H)	1.5/2.2 (V) 1.5 (H)	1.5/2.2
G.W/N.W	kg	770/610	1120/970	610/500

optional accessory
Company Profile
Shandong TSINFA CNC Equipment Co., Ltd. was founded in 2005, The registered capital is 20 million yuan. The company has independent import and export rights, and obtained the European quality management council CE certification. The company is located in the south of Shandong province Mozi hometown, Beijing-Shanghai high-speed railway, Beijing-Fuzhou expressway, 104 national highway through the north and south, to the south is Weishan lake, to the north lies mount tai, convenient transportation, industrial development. As a member of China machine tool industry association (CMTBA), passed the ISO 9001:2015 quality management system certification, the company is constantly innovating in the development, relying on the strong economic strength, advanced and sophisticated professional production equipment, strong technical force, to standardize the entire operation of the enterprise management system mode. Products cover metal cutting machine and metal forming machine two categories. Metal cutting machine tools are: CNC machining center, CNC lathe, inclined bed CNC lathe, general lathe, vertical milling machine, horizontal milling machine, universal milling machine, turret milling machine, drilling and milling machine, slotting machine, gouging machine, turning milling complex machining center, etc. The equipment is exported to USA, Poland, Russia, Sri Lanka, Peru, Chile, Saudi Arabia, southeast Asia and Africa and other countries and regions. It is widely used in automobile, motorcycle, textile machinery, hardware products, 3C, construction machinery, home appliances, railway, ship, other industries. We adheres to the quality of integrity, ensures that every equipment is qualified to leave the factory, to ensure that they can do their best for employees and customers.
Packaging & Shipping

---
