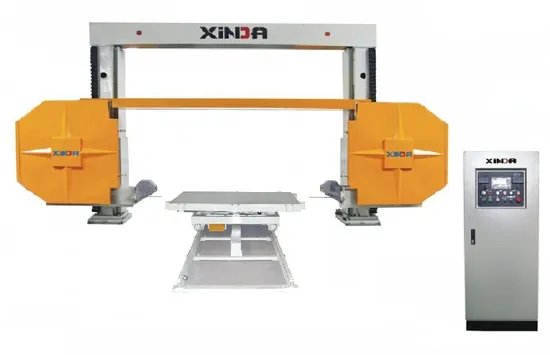

KXJ1500(with rotating table) Single Wire Saw Machine

US$28,000.00-32,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
KXJ1500
Source Voltage
380V
Automation
Automatic
Cutting Ability
High Speed
Control
PLC
Certification
ISO, CE
Conditiaon
New
Loading Container Type
20GP(DC)
Transport Package
by Film Package
Specification
3500× 2000× 1500mm
Trademark
XINDA
Origin
Yunfu City, China
HS Code
84641090
Production Capacity
500

Product Description

Function:The machine is used for cutting slabs and squaring block.
Brief introduction of KXJ1500 wire saw machine:
1,KXJ1500 machine has steady structure, including a crossbeam,two upright column,square box,air compressor tensioning unit,two big flywheel. Left side install a driven big flywheel and air compressor tensioning device. tensioning device controls diamond wire tension or loosen, meanwhile keep the diamond wire pressure. Right side install a driving flywheel and main motor, it can control the speed of wire between 0-35m/s via inverter. the machine can cut different kind of stone material.
2,In order to reduce the diamond wire wear and keep the diamond wire steady , the machine are equiped with two guide wheels (Diameter: 300mm).
3. Trolley move by Screw rod. Screw rod is soaked with oil in the protective cover of screw rod(Patent product).
4. The machine will stop automatically and display failures on the screen if wire broken.
5.The machine has a water spray system. if no water or not enough water,the machine will automatically stop.
Technical parameters:
Parameters KXJ1500
Diameter of Wire Φ8-Φ11
Length of Wire 17300mm
Speed of Wire 0-40m/s
Worktable Size 3000×2000mm
Worktable Whether Revolve 360°
Worktable Load Capacity 20T
Range of Cutter Movement 1600mm
Max Cutting Size(L×W×H) 3500×2000×1500mm
Production Efficiency 1-2m²/h(marble) 0.5-2m²/h(granite)
Main Motor Power 11KW
Water Consumption 3m³/hour
Overall Dimension 8200×5700×4300mm
Diameter of Guide Wheel Φ300mm
Total Power 23.94KW
Total Weight 9T

Electric Cabinet& Operation Panel Photos :
Exhibition:
FAQS:
1) Payment:
30% of total value (down payment)for placing an order, we start to produce the machine→70% (balance payment)before loading the machine to container
2) Delivery time:
The wire saw machine can be shipped within 15 weekdays when received down payment.
3) Guarantee period:
The machine is guaranteed for one year. The man-made accident and the Lightning , Flood ,earthquake , wrong voltage are not covered by the warranty.
4)How about our service?
1.Six engineers are special for installation service for oversea customer. If customer needs our installation service,we are available to dispatch any time.
2. Technical Support 24 hour on line.
