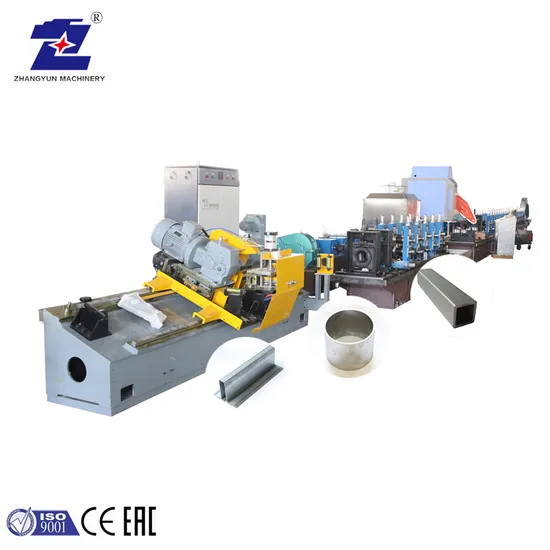

High Precision Round Square Rectangular Shaped Tubes High Frequency Welded Pipe Making Machine for Automobile Profiles

Product Description

High Precision Round Square Rectangular Shaped Tubes High Frequency Welded Pipe Making Machine for Automobile Profiles


Equipment Specifications

Item	Wall Thickness (mm)	Max. Speed (m/Min)	Main Motor (kw)	H.F.Welder (kw)	Width of Rolled Strip	Thickness of Rolled Strip
ZY-HF16	0.3~1.0	90	22	60	22~55mm	0.3~1.0mm
ZY-HF20	0.4~1.5	90	45	100	30~90mm	0.4~1.5mm
ZY-HF32	0.6~1.8	90	75	100	40~120mm	0.6~1.8mm
ZY-HF45	0.6~2.0	80	90	150	50~160mm	0.6~2.0mm
ZY-HF50	0.8~3.0	70	132	200	60~200mm	0.8~3.0mm
ZY-HF60	0.8~3.0	70	90*2	200	60~240mm	0.8~3.0mm
ZY-HF76	1.2~4.0	70	132*2	300	90~280mm	1.2~4.0mm
ZY-HF89	1.2~4.5	70	132*2	300	100~330mm	1.2~4.5mm
ZY-HF114	1.5~4.0	55	160*2	300	100~400mm	1.5~4.0mm
ZY-HF125	1.5~6.0	50	200*2	400	150~410mm	1.5~6.0mm
ZY-HF165	2.0~6.0	50	200*2	500	150~520mm	2.0~6.0mm
ZY-HF219(6mm)	2.0~6.0	40	200*2	500	350~700mm	2.0~6.0mm
ZY-HF219(8mm)	3.0~8.0	40	250*2	600	270~700mm	3.0~8.0mm

Zhangjiagang City Zhangyun Machinery Manufacturing Co., Ltd. is established in 2002, manufacturer of elevator guide rail processing production line machinery, cold roll forming line machinery and high frequency tube welding line machinery.
Quality Oriented,Technology Innovation is our core concept. Each component of our machines is examined and qualified before assembling; each set of our equipment is fully test run before delivery.

---
