Soil Brick Moulding Types Machine

Product Description

soil brick moulding types machine

Dimension of host machine	2800x1700x3300mm	Power of host machine	11-15 kw
Weight of host machine	1.6T	Hydraulic pressure	40-60T
Shaping method	Double side press	Capacity (pieces/8 hours)	8000-10000
Power supply	380/400/220V	Forming period	15-18S

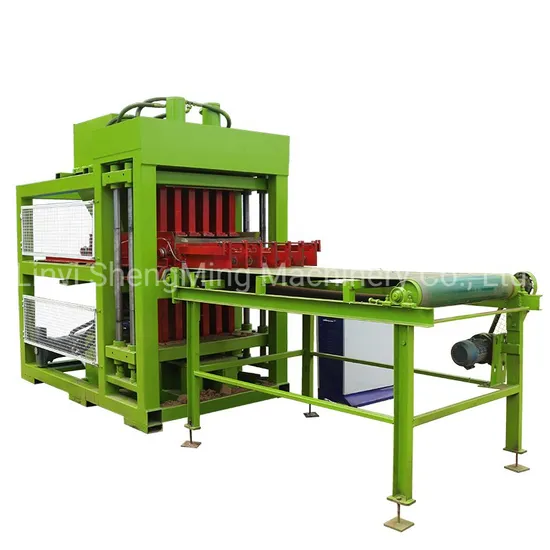

SHM4-10A brick machine interoduction
As a clay brick making machine with high degree of automation, SHM4-10 hydraulic system uses plunger pump to provide hydraulic power for the whole machine,Powerful and low noise, the maximum pressure is 31.5Mpa
The solenoid valve of the machine adopts a well-known brand with large diameter and high stability. The sealing parts of the oil cylinder are imported parts with ultra long warranty.Die steel plates are processed by CNC machining center to ensure minimal error size and beautiful brick forming. The mold can be replaced, and the disassembly is simple and convenient.
The newly designed airbag fixture is added to the machine, which greatly improves the flatness of the bottom of the brick without damaging the quality of the finished brick.The PLC system is equipped with several sets of convertible programs, which can be easily converted by pressurizing up and down, so as to adapt to different raw materials of customers. The equipment can produce various styles of chain bricks and flower bricks.

SHM4-10A brick machine advantage
1. The silent plunger pump is selected as the oil pump, with the maximum pressure of 31.5Mpa
2. The whole machine is automatically controlled by PLC, and Delta PLC is adopted
3. The air bag clamp ensures that the bottom of the brick is flat and uniform
4. The upper and lower pressurization system ensures the compactness of bricks to the greatest extent
5. The maximum pressure of compaction cylinder can reach 100t (optional)
6. Design of oil cylinder quick drop valve

Size (LXWXH)mm	Pieces/mold	Pieces/Hour	Pieces/day
Standard block 300x150x100	4	1200	9600
U Shape block 300x150x100	4	1200	9600
Half block 150x150x100	4	1200	9600
Solid block 230x180x115	3	900	7200
Paver 200x163x60	4	1200	9600

soil brick moulding types machine


(1) Q: what is the material for this machine ?
A: you can use lateriate or other clay material or concrete material, plus a little cement.
(2) Q: How many kinds of block can be made by this machine ?
A: by changing mold, this machine can make all type design brick ,block or even paver.
(3) Q: What is the hydraulic oil for this machine ?
A: Summber use 46#, winter use 32#. all easily found locally
(4) Q: Will you provide spare parts for this machine ?
A: we will provide you one year free spare parts.can support machine working for many years
(5) Q:How many days to make the machine if place order?
A:Normally need 15-20 days but all depend on molds quantity.
