US$8,980.00-12,900.00
|
1 Piece
(MOQ)
|
Basic Info.
Processing Technics
Crushing-before-Mixing
Screen Mesh
With Screen Mesh
Grinding Equipment Type
Feed Hammer Mill
Pellet Mill Type
Ring Die Pelleter
Bulking Machine Type
Ring Die Pelletizing
Expanding Method
Pelletizing
Applicable Materials Shape
Powder
Transport Package
Wooden Box Package
Product Description

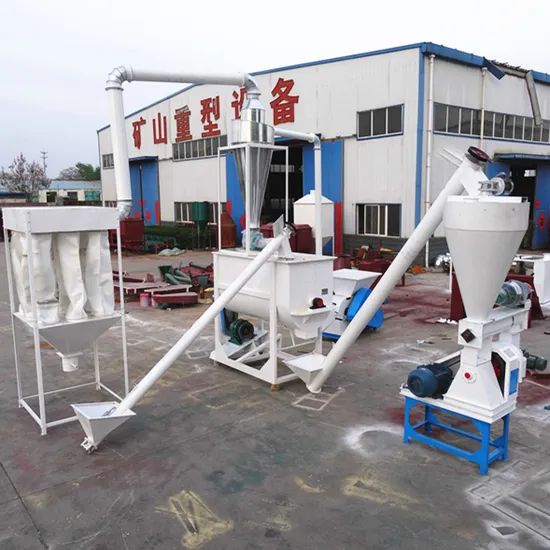

1000KG/H Farm Use Small Feed Pellet Mill Animal Cattle Feed Production Line
1. CM-25B Pig Feed Machinery:
| Model No. | CM-20B | CM-25B | CM-30B |
| Output(kg/h) | 500-700 | 1000-1500 | 1500-2000 |
| Power (kw) | 11 | 22 | 30 |
| Feeding motor(kw) | 0.75 | 0.75 | 0.75 |
| Revolving Speed of ring die (r/min) | 306 | 306 | 330 |
| Inside diameter of ring die(mm) | 200 | 250 | 304 |
| Pellet diameter(mm) | Φ1.5,Φ2,Φ2.5,Φ3,Φ3.5,Φ4,Φ5,Φ6,Φ8 |
| Dimension(m) | 1.1*1.5*1.52 | 1.1*1.15*1.25 | 1.35*1.3*1.6 |
| Weight(kgs) | 580 | 710 | 960 |
2. CM-25A Pig Feed Machinery
3. Technical parameter:
| Parameter/Model | SZLH-15A | SZLH-20A | SZLH-25A |
| Output(kg/h) | 100-200 | 500-700 | 1000-1200 |
| Power (kw) | 3 | 11 | 22 |
| Revolving Speed of ring die (r/min) | 420 | 306 | 306 |
| Inside diameter of ring die(mm) | 150 | 200 | 250 |
| Pellet diameter(mm) | Φ1.5,Φ2,Φ2.5,Φ3,Φ3.5,Φ4,Φ5,Φ6,Φ8 |
| Dimension(m) | 0.75*0.45*0.8 | 1.1*1.15*1.25 | 1.1*1.15.1.25 |
| Weight(kg) | 175 | 500 | 625 |
4. Spare Parts
Our pellet machine can produce wood pellet and feedstuff pellet. It may also be applicable to biological fertilizer, organic manure as well as fertilizer for low-temperature granulation. Ring Die
5.Final Feed Pellet for Different Animals:
6. CE Certification :
7. Customer's Feedback:
8. FAQ:
1>. What's Raw Materials for Making Chicken/Cattle/Fish Feed Pellets? -- Corn. Soybean. Wheat/Bran.Bone Powder. Fish Meal. Meat Powder. Straw. Grass Etc.
|
2>. What's the Capacity of Chicken Feed Pellet Making Machine? -- 80-1100kg/h. 200-300kg/h. 300-400kg/h. 400-600kg/h. 600--800kg/h. 900-1000kg/h
|
3>. What's the Spare Part of Feed Pellet Making Machine? - - Flat Die and Roller
|
4>. What's the Diameter of Feed Pellets Animals? -- 2.5mm/3mm/4mm/6mm/8mm/10mm
|
5>. What's the Size and Moisture Content of Raw Materials? -- Size: 3-5mm -- Moisture Content: 14-16%
|
>>
