Hot Selling Hpd Series CNC Hydraulic Pressing Punching Drilling Machine for Steel Metal Plate

Product Description

Hot Selling HPD Series CNC Hydraulic pressing Punching Drilling Machine For Steel Metal Plate
Product Description
CNC punching machine refers to the technology that uses a computer-controlled punch to punch out the required hole type or pattern. CNC punching has the advantages of convenience, climbing frame CNC punching machine, fast, high accuracy and strong controllability.

Product Parameters

Model		HPD103
Punching Force(KN)		1000
Marking Force(KN)		800
Work thickness Range (mm)		5-25
Max. work piece length (mm)		1500*800
The dies position number		4
Max.Punching Diameter (mm)		26
Minimum distance between the hole and parts edge (mm)		25
Max. Drilling Diameter(mm)		50
Feeding Speed of Drilling(mm/min.)		20-200
Drilling Spindle Rotation Speed		120-560
Character No.		12
Drilling spindle stroke(mm)		180
Character size (mm)		14 x 10 x19

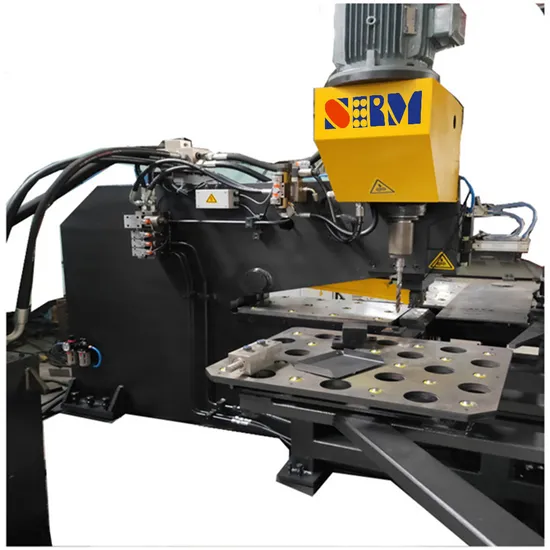

Machine Details
Structure Features:
1.The fuselage is a C-shaped steel plate welded structure with good rigidity and large operating space.
2.The machine is equipped with three working stations(including one typing position),the stations switch is automatically carried out.
3.Clamping system which is suitable for different thickness of the workpiece,with the benchmark zero block,the workpiece is supported by ball worktable.
4.X axis and Y axis running by the servo motor + ball screw + precision linear guide driven by the dual axis CNC system to control the punching position.
5.The whole processing procedure is fully automatic, the operator just need to input workpiece drawing into the computer.

Application
Application: The machine used for high efficiency punching on the connecting plates which used widely in bridge, angle steel and steel structure industries etc.


Company Profile
Our workshop started since the year of 2008, built by a group of engineers, one of our founder member Mr. XU, who was worked as leader engineer for first-class roll forming department in SINOMRCH(China National Machinery Industry Corporation). After years of development, we have exported to many countries in the world such as Italy, Ecuador, America, India, Indonesia, Philipines, Brazil, Thailand, Vietnam, Russia, Malaysia, Peru, Korea etc., in order to service our clients overseas, we cooperate the local service agent to provide the after sale service; after more than ten years of running, we build the nice relationship with our clients and the local agent, those help us gain high reputation from our customers and the agents.

ENTERPRISE CERTIFICATE
INTERNATIONAL EXHIBITIONS
CUSTOMER VISITS
FAQ
♥1.How to operate the machine ?
We will deliver English manual and video with the machine to you. lf you still need our help,please contact us.
♥2.If some problems happen to this machine during warranty period, what should I do?
We will supply free charge of spare parts and regularly maintenance service during machine warranty period if machine have some problems. So any doubts, just let us know, we will give you solutions.
♥3.Does the machine can be customized according to my requirements ?
Yes, we have a strong technical team and have rich experience.
♥4. What about the package and shipment ?
The machine will be packaged by multilayer plastic wrap for anti-humidity on the sea. The strong steel wire roops will be used for fix the machines in container to avoid any damage in transportation.

Packaging & Shipping
1.The milling machine is packaging with protective film.
2.Pack the machine in a wooden box.
3.Load each wooden box into the truck.
4.Fix the milling machine inside the container.
5.Ship the goods to the destination port by sea.

---
