Cutting Machine

Product Description

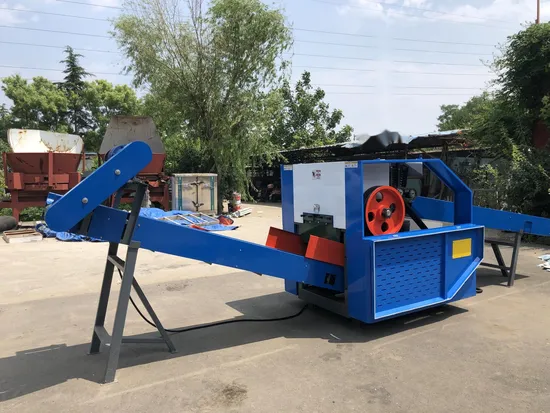

HSN1200B Cutting MachineBrief Introduction
HSN1200B Cutting Machine with high-speed rotary blades, which also be known as shredding machine or shearing machine, is one of our latest products, adopted the international leading design of oblique torsional rolling knifes moving & shearing onto the fixed-point of the fixed blade to realize continuous high-speed shear.
Technical Specifications

HSN Series Textile Cutting Machine
NO.	MODEL	HSN1200B
1	Motor for cutting	8P15kw
2	Motor for transferring	4P2.2kw inverter motor
3	Gear box Model	120#
4	Ratio of gear box	20:1 & 31:1
5	Pulley of motor of cutting	D140mm
6	Moving blade Roller	D400x600mm
7	Control box	Individual box
8	Input belt	3000*520mm
9	Output belt	3000*520mm
10	Moving blade	Alloy steel 4pcs
11	Fixed blade	Alloy steel 2pcs
12	Machine size	6250*1414*1578mm
13	Machine Weight	2150kg
14	Cutting Size	Adjustable
15	Production	800-1200kg/h
16	Packing	3220x1015x1150mm / Wooden Case / GW: 2000kg 2160x1710x1720mm / Wooden Case / GW: 410kg

Application
HSN1200B Cutting Machine is used for cutting and recycling waste clothes, cotton yarn, discarded clothing cotton, waste hemp, chemical fiber, linen, leather, plastic film, paper, fabric, textiles, nonwoven fabrics and so on.

---
