PLC600/800/1200 Split Bridge Saw Cutting Machine Stone Slab Bridge Cutter Machine

Product Description

Application

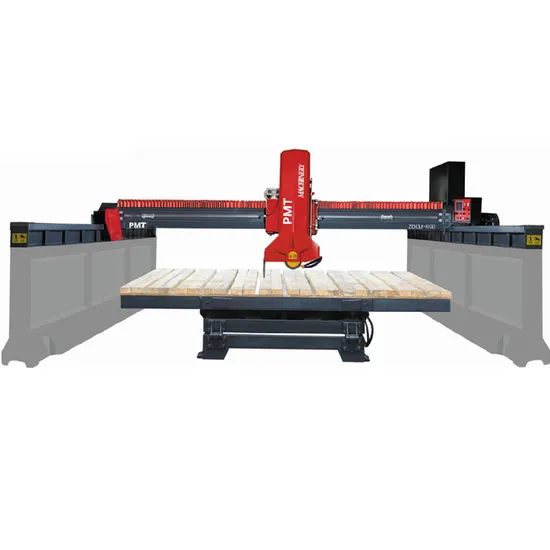

ZDQJ-600 infrared automatic stone bridge cutting machine has three type, adopting PLC system and Human-machine interface, togethering with ultra-high precision rotary encoder positioning and infrared device, with Chinese & English double operation language, using inverter to control leftright feeding,adjusting the speed according to stone material, using hydraulic lifting system which equipted through 4 guide post, also this machine provide the unique side beam protection device, main spare parts adopt imported well-quality materials.
The whole machine is featured with high cutting efficiency, high cutting precision, high stability, easy to operate, specially high value granite and big size marble.
key words: bridge cutting machine, stone cutting machine, bridge saw
Our bridge saw is a monobloc saw machine for granite kitchentop & countertop fabricator, stable electric system.
- It usually uses for cutting granite, marble Quartz of slab,tile, kitchentop,countertop, etc.
- The max cutting size is 3200mmx2000mmx175mm (126"x78"x7").
- The blade motor is 15Kw( 20HP)18.5kw(25hp) , providing high power to work.
- The table can tilt 0-85 degree to easy load and unload the material.
- The blade travels on the beam and it can miter 45 degree cutting, it is a preferable saw for grainte fabricator.
- ZDQJ500/600/800/1200 bridge saw provides covered oil bath for the movements of bridge rails.- Also all the functions are operated on the control panel that make it very user friendly.
Technical Parameter

Product Description

Parameter	Unit	ZDQJ-450	ZDQJ-600	ZDQJ-800
Blade diameter	mm	300-450	350-600	350-800
Max processing size	mm	3200*2000*120	3200*2000*180	3200*2000*280
Dimension of worktable	mm	3200*2000	3200*2000	3200*2000
Worktable tilting degree	°	0-85°	0-85°	0-85°
Worktable rotation degree	°	0-90°/0-360°	0-90°/0-360°	0-90°/0-360°
Main motor	kw	15	18.5	18.5
Gross motor	kw	21	24	24
Water consumption	m³/h	4	4	4
Outline dimension	mm	6000*4800*2900	6000*4800*3100	6000*4800*3200
Gross weight	kg	5250	5500	5850

Packaging & Shipping

Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* After-sales service 24 hour on line.If you have any problem,just conact our sales department,customer service department,etc at any time.

---
