30tph Full Automatic Tile Adhesive Batching Plant

US$250,000.00-400,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
NWDMP-30
Power Supply
Electric
Automatic Grade
Automatic
Shaft Type
Single
Layout
Vertical
Automation
Full Automatic
Condition
New
Type
Dry Mortar Production
Processing
Dose, Mix and Pack
Method
Mixing
Product
Dry Mortar
Application
Dry Mortar Production
Mixer
Dual Shaft Mixer
Mixing Time
180s
Operator
3 People
Transport Package
Seaworthy Packing
Specification
CE
Trademark
Newwall
Origin
China, Shanghai
HS Code
8474310000
Production Capacity
30 Sets Per Year

Product Description

Shanghai Newwall Machinery has provided tile adhesiv batching plant since 2003, during 13 years, we have finished over 200 tile adhesive batching plant at home and abroad. We provide turnkey projects, which include plant design, machine manufacturing, installation and formulation.

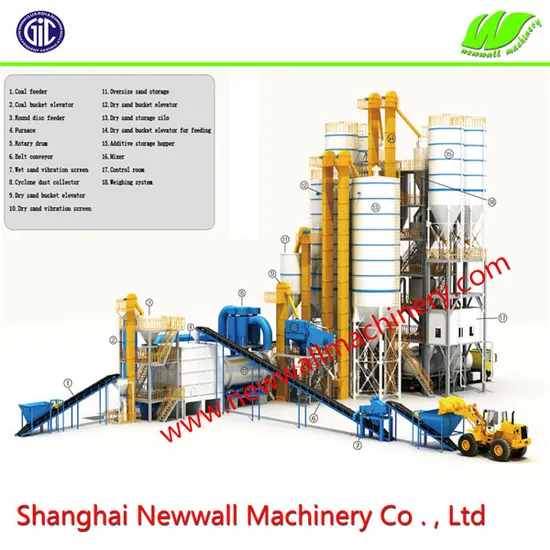

the tile adhesive batching plant main consists of the following parts:
Sand dryer and screen, material store silo, screw conveyor, weighing system, bucket elevator, mixer, end product silo, packing machine and stacker, dust collector and control system. The productivity is 5-80T/h.
According to the structure type, tile adhesive batching plant can be classified into tower type, series type and workshop type. It is up to the character of raw materials and workshop situation. The needed area is 500~5000m2.
Model Full volume (m3) Load coefficient Power (kw) Rated speed (r/min)
WZ-0.5 0.5 0.4~0.6 5.5 58
WZ-1.0 1.0 0.4~0.6 11 51
WZ-2.0 2.0 0.4~0.6 18.5 43
WZ-3.0 3.0 0.4~0.6 22 38
WZ-4.0 4.0 0.4~0.6 37 38
WZ-6.0 6.0 0.4~0.6 45 34
WZ-8.0 8.0 0.4~0.6 55 29
WZ-10.0 10.0 0.4~0.6 75 29
