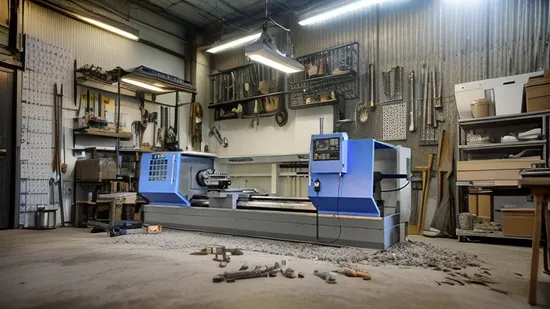

Versatile Metal CNC Lathe for Precision Machining Ck6180

Product Description

Metal Conventional Multi Purpose Horizontal Hydraulic chuck CNC lathe CK6180
Product Description
The machine is suitable to process the middle and large size work piece in steel , cast iron ,non-ferrous metal material . With the feature of big power and high rigidity , this machine is applied to heavy-cut the inner circle ,ex-circle , end surface and thread in both metric and English system , and could drill and bore the holes . * Higher stability one-piece machine bed* 3-gear spindle speed step-less in gear* Higher rigidity pedestal* Wider layer board* Integrated automatic lubrication system

ITEMS		UNIT	CK6163	CK6180
Capacity	Swing over bed	mm	Φ630	Φ800
	Swing over cross slide	mm	Φ350	Φ550
	Distance between centers	mm	1000/1500/2000/3000
	Width of bed way	mm	550/600
	Max. load capacity	T	3/5
Spindle	Spindle bore	mm	Φ104/Φ130
	Spindle bore taper	-	MetricΦ120, MT#5 MetricΦ140, MT#6
	Spindle speed steps	-	Manual 3 steps	Manual 3 steps HYD. 4 steps
	Spindle speed range	rpm	10-1000	17-1000
	Chuck size	mm	Φ315
	Chuck type	-	3-jaw manual
Turret	Turret type	-	NC turret 4 position
	Tool shank size	mm	32x32
Carriage	X axis travel	mm	320	420
	Z axis travel	mm	850/1350/1850/2850
	X axis rapid traverse speed	mm/min	4000
	Z axis rapid traverse speed	mm/min	4000
Tailstock	Tailstock quill diameter	mm	Φ104
	Tailstock quill taper	-	MT#5
	Tailstock quill travel	mm	250
Motors	Main spindle motor	kW	11
	Coolant pump motor	kW	0.125
Accuracy	Positioning accuracy	mm	0.020
	Repositioning accuracy	mm	0.010
Dimensions	Width x Height	mm	1690x1740
	Length	mm	3390/3890/4390/5390
Weight	Net weight	T	4.7/5.1/5.5

Detailed Photos
Packing shippingFor machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
Company Profile
FAQ
1:How can I choose the most suitable machines ?A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on . 3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us. 4. What is your trade terms?
A : FOB, CFR and CIF all acceptable. 5: What's the Payment Terms ?A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight . 6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set ) We want to know:1.What's your Industrial Voltage? 2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model! 3.If need CIF Price, please kindly tell us the port of destination.
