Heavy-Duty Hydraulic Disc Harrow (1BZ series)

Negotiable 2 Pieces (MOQ)

Basic Info.

Model NO.
1BZ-1.8/2.2/2.5/3.0/3.4
Application Field
Agriculture, Forestry
Farming Policy
Dry Cultivating Machinery
Power Source
Diesel
Operation
Soil Preparation Machinery, Movable Operation
Traction Type
Traction
Drive Type
Chain Drive
Arbor Configuration
Horizontal Axis
Color
Green
Warranty
One Year
Overall Dimension
532*288*134
Weight
1380-1430
Working Width
2.5
Working Depth
20
No of Disc
24
Matched Power
55-73.5
Dia.of Disc
660
Transport Package
Iron Shellframe Box
Specification
ISO9001: 2000
Trademark
Dadi
Origin
China Shandong
HS Code
8432290000
Production Capacity
5000sets/Year

Product Description

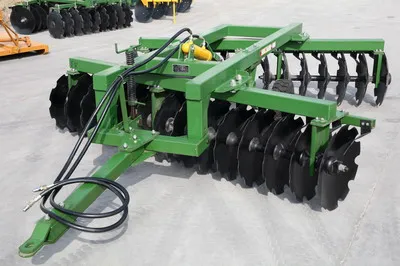

Heavy-duty disc harrow
The series heavy-duty offset disc harrow are mainly used for cleaning away stubble of plants before tillage, or crushing clods after tillage on uncultivated land and in sticky heavy clay soil fields, they can also be used as a plough for primary tillage in dry cultivated fields.
The series products are all fitted with hydraulic rubber wheel for transportation, It is easy to be transported and change direction on the edge of fields.
Specifications:
Model Unit 1BZ-1.8 1BZ-2.2 1BZ-2.5 1BZ-3.0 1BZ-3.4
Overall size cm 480*200*134 482*244*134 532*288*134 532*332*134 582*376*134
Weight kg 1050-1100 1250-1300 1380-1430 1500-1550 1650-1700
Working width m 1.8 2.0 2.5 3.0 3.4
Working depth cm 20
Disc space mm 230
Qty. of disc pc 16 20 24 28 32
Dia. Of disc mm 660
Ground clearance mm >160
Productivity ha/h 1.1 1.3 1.4 1.7 1.9
Matched power hp 65-80 75-90 80-100 90-100 100-120
Linkage Trailed
