Plastic 28mm Screw Water Cap Injection Mould/Molding Machine 50ton

Product Description

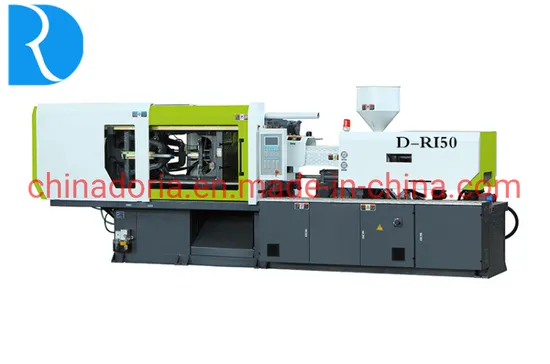

Plastic cap injection moulding machine D-RI50
1. Product details:
2. Technical data of D-RI50

Model Item	D-RI50
Screw diameter(mm)	28
Injection pressure(Mpa)	168
Shot weight(PS) (g)	53
Screw L/D ratio	20:1
Screw stroke (mm)	102
Screw speed(r.p.m)	0-320
Injection rate (cm3/s)	32.4
Plasticizing capacity(g/s)	4.5
Clamping stroke(tons)	50
Mould clamping stroke (mm)	255
Max. daylight opening (mm)	605
Mould thickness (Min.-Max.) (mm)	150-350
Space between tie-bars (mm)	280*260
Hydraulic ejection force (tons)	2.2
Hydraulic ejector stroke (mm)	65
Max. pump pressure(Mpa)	14
Motor power(KW)	5.5
Heater power(KW)	2.3
Temperature control zones	3+1
Tank capacity (L)	160
Machine dimension(L*W*H)	3600mm*1100mm*1700mm
Machine weight(ton)	2.8

3. Specifications
Injection molding machine
1.Big tie bar space and shot weight capacity
2.Most famous component parts
3.Perfect after-service
4. FEATURES
- A variety of text can be switched.
- Manual, semi-automatic and fully automatic mode.
- Automatic movement monitoring with alarm and fault diagnosis.
- Function of slope setting can set the start and stop of movements, so as ensure the smooth movement
5. Pictures worshop of machine:
6. Warehouse of machine:
8. About us:
Taizhou Doria Plastic Equipment Co., Ltd. is located the town of plastic products and mould in China, which is one manufacturer owns special production teams, advanced production equipments and rich production experience.
The main products are following: Automatic & semi-automatic blow moulding machine, PET preform, plastic injection machine, preform moulds, bottle moulds, commodity moulds and correlative products.
Based on "Quality is first; Honor for the honest", we always continue development and innovation to witness the maturity of industrial chain of products and improve the quality of products continually. Untiring effort makes the products, especially for 5gallon blow moulding machine, 5gallon PET preform and commodity moulds are widely accepted by our customers.
We have good market in South America, Africa, Asia, Europe, North America, and our many customers from Canada, Brazil, Thailand, Chile, Algeria etc.
Meanwhile, the output of our main product automatic 5gallon blow moulding machine could achieve 600pcs/h which is the breakthrough of our company.
Welcome everyone to visit us; we hope we will have good chance to cooperate!
9. Location:
No.362 Lingxiage Village
Xicheng Street, Huangyan
Taizhou, Zhejiang
China
10. Contact us:

---
