CFC Connectors Carbon Fiber Composite CFC Machined Parts

Product Description

What is Carbon Fiber Composite?
Carbon fiber-reinforced carbon (C/C) or carbon fiber composite is a high-strength composite consists of a carbon or graphite matrix, that is fortified with very strong carbon fibers. Carbon Fiber Composite is also referred to as Carbon-Carbon Composite, CFC, or Carbon Reinforced Matrix Composite. All of these aliases refer to this product.
Specifiation:Volume Density (g/cm3): 1.45-1.85Tensile Strength (Mpa): 180-350Compressive Strength (Mpa): 220-380Carbon Content (%): ≥99.8Ash Content (%): ≤0.06Processing Temperature (°C): 1450-2500Application Temperature (°C): 1350-3600
Lightweight, high-strength, reliable.
Originally developed for use in the aerospace sector, CFC has become an extremely cost-effective solution for furnace fixture applications. The material is mainly used highly demanding high temperature applications. The unique attributes of CFC offer advantages compared to metal and graphite fixtures. The material can be provided in a wide variety of sizes and geometric shapes.
Typical properties of the material
Light (perfect for automotive industry)Very strong at highest temperaturesHigh thermal shock resistanceHighly fracture resistanceLow thermal expansion APPLICATIONS
Aerospace and military.
Heat treating and furnace fixtures.
Primary and secondary structures.
Windmill blades.
Brake linings, automotive, and tooling.
Solid rocket nozzles.
Our CFC parts
Our CFC parts include but are not limited to: Sheets, Angles, U-Channels, Rings, Tubes, Pipes, Cylinders, Bolts, Screws, Nuts, Threaded rods, Washers, Heating Elements, Shelving, Survey Racks and Baskets for heat-treating.

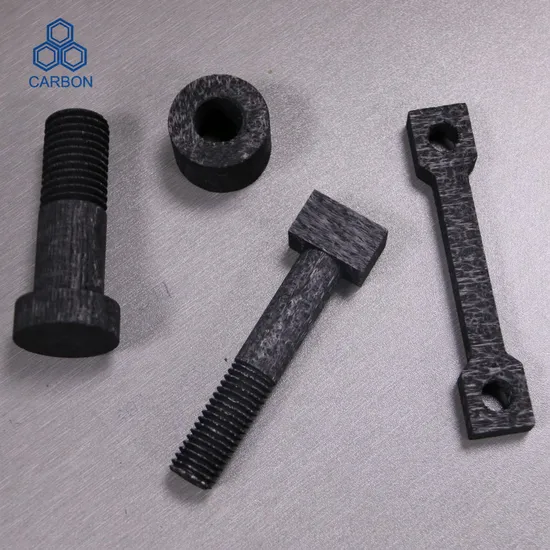

CFC Threaded rods, bolts and nuts
C/C-composite Bolts & Nuts characterized by its high heat resistance are used in many high temperature environments over 1000°C while metals or ceramics lose mechanical strength.
Also, the unique graphite properties such as resistance to adhesion or friction make them ideal for joining components under high temperatures.
CFC Cylinders
We deliver CFC cylinders in an excellent quality for high temperature applications such as hot pressing of tungsten carbide or ceramics.
Carbon-carbon composite features:
(1) Physical properties: After high temperature treatment, the carbon composite has higher carbon content, >99%, the density is low, the mechanical properties are good. Due to good characteristic of high melting point of carbon, high temperature resistance, corrosion resistance and thermal shock performance, the carbon composite is resistant to acid, alkali and salt.
(2) High mechanical strength: the strength is 5 times that of steel at high temperature.
(3) High temperature resistance: excellent mechanical and electrical properties can still be maintained at temperatures above 2000ºC.
(4) Low thermal expansion coefficient.
(5) Low heat capacity. Special Properties of carbon carbon composite: High Acid-resisting and alkali-resisting properties; Low density compared to metals; High temperature, cold-resistant, tensile strength is 7-9times than Steel; very good thermal shock resistance…
Applications of carbon composite

Category	Application
Heat Resistance	Furnace Parts
	Trays and Jigs
	Springs
	Heating Elements
	Aerospace Parts
Sliding and Friction	Brake Materials
	Clutch Plates
	Sliding Boards for Pantograph
	Industrial Bearing
Advanced Material	Solar Cell Manufacturing Equipments
	Chemical Manufacturing
	Semiconductor / Display Manufacturing Equipment

Type of carbon carbon composite:
Strict Quality Controal Ensures High Quality Products
Safe Packing
WHY CHOOSE US
Q:Are you a manufacturer or trading company?A:We are a manufacture for graphite material and graphite machined products.Q:How can you gurantee the quality?A:We have the most advance equipment in our Lab and professional quality control team.We can gurantee each batch of the product with the stable quality.Q:Can you offer samples?A: Yes, we offer samples to testQ: Delivery time?A:Around 10 days.
Q: Shipping potA: Tianjin or main port in ChinaQ:Payment termsA:T/T,LC at sight

---
