K8000L-K16000L K Type Glass Lined Chemical Reactor

Product Description

	Internal Vessel	Jacket
Design Pressure ( MPa )	0.2	0.6
Design Temperature ( ºC )	-19 ºC /200 ºC	-19 ºC /200 ºC

Symbol	Usage
a	Medium Outlet
b1,b2,b3,b4	In/Outlet
c	Manhole
d	Agitator Hole
e1	Thermowell
e2,g1,g2,g3,g4,k	Spare
h	Sightglass
m	Vent Hole
n	Clean Hole

K8000L Design Drawing (Plan View) K10000L-K16000L Design Drawing (Plan View)

Unit: mm
Specifications		K8000	K10000	K12500	K16000
Nominal Capacity (L)		8000	10000	12500	16000
Total Capacity (L)		10190	12750	15250	18493
Calculated Capacity(Notes 1) (L)		8850	10900	13400	16680
Jacket Capacity (L)		1724	1940	2324	2500
Heat Exchange Area ( m2 )		19.6	21.54	26.5	28
Reference Weight (kg)		7810	8720	10155	11700
Main Dimension	d1	2000	2200	2200	2400
	d2	2200	2400	2400	2600
	d3(Notes 2)	2452	2704	2704	2908
	h1	3000	3060	3720	3740
	h2	710	770	770	825
	h3	380	400	400	460
	h4	830	850	850	900
	B1	400	470	470	470
	B2	510	550	550	550
	Φ	30	36	36	36
Nozzle DN	a	125	150	150	150
	c	300×400	300×400	300×400	450
	d	200	200	200	200
	e1	200	200	200	200
	e2	150	200	200	200
	g1	150	150	150	150
	g2	150	150	150	150
	g3	150	150	150	150
	g4	/	150	150	150
	h	125	125	125	125
	k	125	125	125	125
Jacket Nozzle DN	b1	65	80	80	100
	b2	65	80	80	100
	b3	65	80	80	100
	b4	/	80	80	100
	f1	65	80	80	100
	f2	65	80	80	100
	f3	65	80	80	100
	m	G3/4''	G3/4''	G3/4''	G3/4''
	n	G1/2''	G1/2''	G1/2''	G1/2''
Drive	DN	110	110	110	130
	h5	1375	1375	1375	1995
Notes 1: Calculate Capacity: Volume under highneck flange.
Notes 2: Support types could be determined by users; With no special request, lugs would be normally applied.

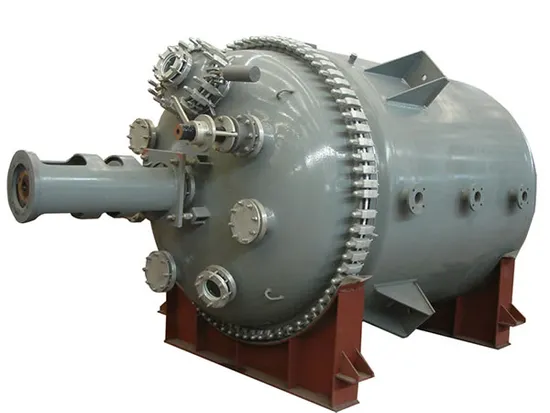

Main Features The K type glass lined reactor is a reactor designed with separable cover and body. The cover is fastened to the body using clamps, with gaskets between them. Generally, this pressure vessel is suitable for the small capacity chemical processing works. Since the cover can be separated from the body, the chemical process equipment comes with a diversity of agitating methods and is excellent for all kinds of users. Made from high end enamel, combining proven and sophisticated enameling technology, this open type glass lined reactor provides remarkable resistance to corrosion, impact and severe change of temperature as well as reliable durability. According to capacities, Our K type glass lined reactors are available in K50L, K100L, K200L, K300L, K500L, K1000L, K1500L, K2000L, K3000L, K4000L, K5000L, K6300L, K8000L, K10000L, K12500L, K16000L and other models. They ensure ease of use and maintenance.

---
